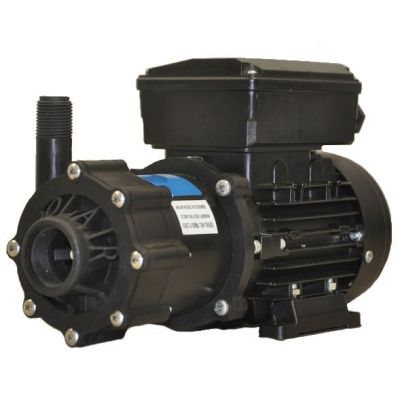

Webasto KoolAir TPM1000 Marine Pump - 115/230V
The Koolair TPM1000 is a 115/230 Volt TEFC (Totally Enclosed Fan Cooled Motor Enclosure) model. Is a sealless centrifugal magnetic drive seawater circulation coolant pump. It is most commonly used for marine air conditioning. Model generates a maximum flow of 17 gallons per minute as a result with a maximum head of 27 feet at 11.7 PSI. The TPM1000 is also ISO 8846 Marine Ignition Protected. 1000 gallons/hr. Replaces part number: 5011374A
Part Number: 5011374B
Part Number: 5011374B
Reference: 5011374B
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Webasto KoolAir TPM1000 Marine Pump - 115/230V
The KoolAir TPM1000 dual 115/230 voltage, TEFC magnetic drive seawater circulation coolant pump is most commonly used for marine air conditioning. The Koolair TPM1000 is a 115/230 Volt TEFC (Totally Enclosed Fan Cooled Motor Enclosure) model. Is a sealless centrifugal magnetic drive seawater circulation coolant pump. Model generates a maximum flow of 17 gallons per minute as a result with a maximum head of 27 feet at 11.7 PSI. Most commonly used on your boat or yacht for marine air conditioning while circulating seawater.
The KoolAir TPM1000 dual 115/230 voltage, TEFC magnetic drive seawater circulation coolant pump is most commonly used for marine air conditioning. The Koolair TPM1000 is a 115/230 Volt TEFC (Totally Enclosed Fan Cooled Motor Enclosure) model. Is a sealless centrifugal magnetic drive seawater circulation coolant pump. Model generates a maximum flow of 17 gallons per minute as a result with a maximum head of 27 feet at 11.7 PSI. Most commonly used on your boat or yacht for marine air conditioning while circulating seawater.
Key Benefits
- To withstand thermal overloads, hence without failure, the pump is run dry protected. The pump end most is certainly protected from thermal meltdown in a run dry event.
- Materials exposed to the solution (wet end) are Reinforced Polypropylene, Buna N and Ceramic Magnet.
- The inlet connection is a 1” FPT and the outlet is ½” MPT.
- Includes fully integrated, heavy duty base.
- The motor is a 1 Phase, Dual 115/230 Volt, 1/8 HP motor on either 50 or 60 HZ.
- Maximum internal pressure is 50 PSI.
- The maximum liquid temperature is 180 F or 82 C.
- The pump is not self-priming and requires flooded suction.
- ISO 8846 Marine Ignition Protected.
Performance Curve
Dimensions
Technical Specifications
| Attribute | Information |
|---|---|
| Weight | 12 lbs |
| Maximum Flow |
17.2 GPM (54.8 LPM) |
| Maximum Head |
27 Feet of Head @ 11.7 PSI |
| Maximum Internal Pressure |
50 PSI |
| Maximum Liquid Temperature |
180° F (82° C) |
| Inlet |
1″ FPT |
| Outlet |
1/2″ MPT |
| Hertz |
50/60 Hz |
| Voltage |
115/230 Volt |
| Phase |
Single Phase (1 PH) |
| Watts |
216/207 |
| Amps |
1.6 |
| Horsepower |
1/8 HP |
| RPM |
3450 |
