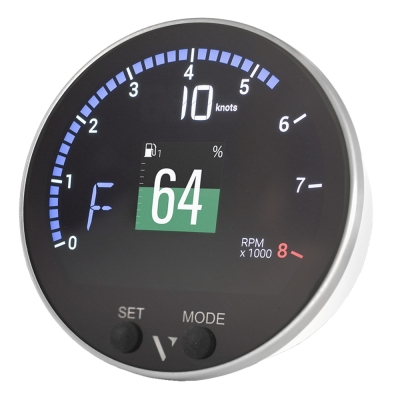

Veratron Suzuki VMH-35 PWM Display with Sumitomo Connectors

The Veratron VMH-35 Suzuki PWM Display offers a modern, high-tech solution for monitoring engine and vessel performance on Suzuki-powered boats. Designed for seamless installation, it includes a dedicated harness with mating Sumitomo connectors, enabling true plug-and-play integration.

Its compact 85mm (3-3/8”) round format fits standard panel cutouts, making it ideal for dashboards, consoles, and bulkheads on smaller vessels where space is limited. The mineral glass lens is optically bonded to the sun-readable hybrid display, delivering crisp visibility even in direct sunlight. A brushed stainless steel bezel complements both classic and modern marine interiors.

Built for harsh marine environments, the VMH-35 is rated IPX7 waterproof front and rear, ensuring durability in exposed cockpit installations.

Key Features

• Plug-and-play installation with Suzuki-compatible Sumitomo connectors

• Designed for Suzuki engine monitoring

• Embedded NMEA 2000® gateway included

• Integrated GNSS receiver (GPS)

• Sunlight-readable hybrid display

• Mineral glass front lens

• Brushed stainless steel bezel

• IPX7 waterproof (front and rear)

• Fits standard 85mm (3-3/8”) cutout

• Intelligent Battery Sensor (IBS) compatible

Full NMEA 2000 Integration

The built-in NMEA 2000® gateway distributes sensor data such as fuel level, trim, and tachometer readings to other onboard devices like chartplotters—eliminating the need for an additional external converter. The analog inputs make it ideal for refitting older engines into modern networks.

Embedded GNSS Receiver

The integrated GPS receiver enhances engine data with real-time speed, compass heading, and position information, making the VMH-35 a powerful standalone navigation and monitoring solution.

Performance & Display Capabilities

• Displays up to 30 types of data

• RPM display up to 8,000 with programmable overspeed alarm

• EcoMode pop-up screen

• Tank level monitoring

• Battery status

• Vessel and GPS information

• Fast processing via advanced microprocessor

• Low power consumption: approx. 170mA at full brightness

The display is easily configured using the intuitive on-screen menu and soft-touch buttons.

Technical Specifications

• Display Size: 85mm (3-3/8”) standard cutout

• Protection Rating: IPX7 (front and rear)

• Connectivity: NMEA 2000® gateway included

• Inputs: Analog and alarm inputs

• GNSS: Integrated GPS receiver

• Power Consumption: Approx. 170mA (full brightness)

• Design: Black-glass face with stainless steel bezel

Installation

Designed for easy retrofit or new installation in Suzuki-powered vessels using the included Sumitomo connectors.

Compatibility Notice

This product is designed to be compatible with Suzuki engines. However, it is not manufactured, endorsed, or approved by Suzuki Motor Corporation. Veratron AG is an independent company with no affiliation or relationship with Suzuki Motor Corporation.
