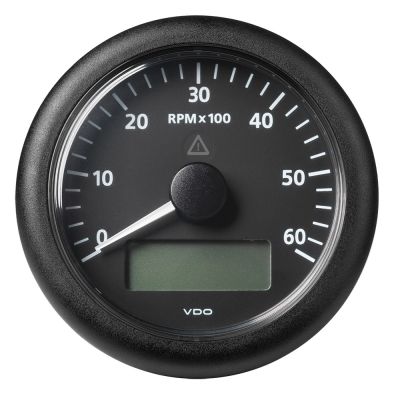

Veratron VDO Marine ViewLine Tachometer w/Multi-Function Display - 3-3/8" (85MM) - Black Dial & Bezel - A2C59512393
VERATRON 3-3/8" (85MM) VIEWLINE TACHOMETER 0 to 6000 RPM W/ MULTIFUNCTION. FORMERLY VDO.
Reference: A2C59512393
In Stock: 3
$152.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Veratron VDO 3-3/8" (85MM) ViewLine Tachometer with Multi-Function Display - 0 to 6000 RPM - Black Dial & Bezel
The ViewLine Tachometer is available with or without operating hours counter (digital display) and can be connected to conventional marine engines (no data bus).
One LED warning light is integrated as a standard.
Features of Veratron Marine Viewline Tachometer:
- Various sensor inputs (W, Ind, Hall, Generator)
- Output for acoustic alert (option)
- LCD size - 37 mm x 11 mm
- 8 and 14 pole Tyco / Hirschmann bush housing
- Operating voltage 8 – 32 V
- Accuracy +/- 2.5 % of full scale reading
- < 175 mA current consumption with an LED warning light as standard
- Number of pulses programmable via dip switch or PC software (ViewLine programming tool)
- Anti-fog double lens
- Protection rating front IP67, rear IP52
- 85 mm installation diameter
- 50 mm installation depth
- Operating temperature range -20 °C / +70 °C
- Reverse polarity protection
Specifications of VDO Veratron A2C59512393
| Series | ViewLine |
| Gauge Type | Multifunction |
| Gauge Size | 3-3/8" |
| Box Set | No |
