Veratron VDO Marine OceanLink 7" NMEA 2000 Certified TFT Gateway - Black - A2C1865330001
VERATRON OCEANLINK 7" NMEA 2000 TFT GATEWAY - BLACK
Reference: A2C1865330001
In Stock: 3
$1,421.01
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

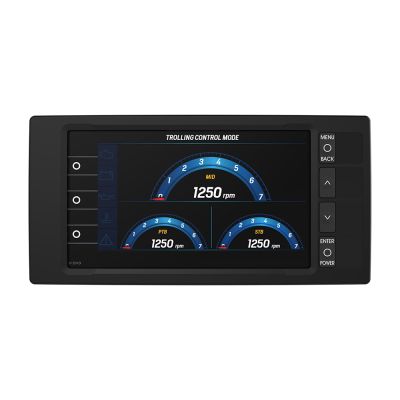

OceanLink 7" NMEA 2000 Certified TFT Gateway - Black
The new OceanLink 7" multifunction TFT Display features a full 24 bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display shows and distributes a wide array of data received from NMEA 2000® and J1939 CAN Bus systems and analog sensors directly connected to the display. Users can customize up to 40 different data pages with single, double, treble or quad grid layouts.
TFT Displays can be daisy-chained with other OceanLink® gauges, displays or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000® backbone (optional adapter cable required) for simple installation on any yacht.
Features of A2C1865330001
- Touch screen function
- Optical bonded mineral glass lens
- Front & rear side protection rating IPX7
- 1x NMEA 2000® connector
- 2x J1939
- 6x Analog input
- 2x Frequency input
- 2x 4–20 mA
- 3x Digital input or 0–5 V
- 2x Alarm output
- 2x Video input
- 2x EasyLink data output
- 2x Programmable alarm output 500 mA
- Operating temperature range -20°C/+70°C
- 12/24V
Specifications
| Instrument Function | Multifunction |
| Screen Size | 7" |
| Shape | Rectangular |
| Transducer Type | Not Included |
