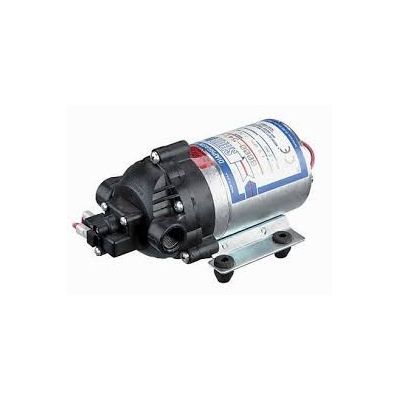

SHURFLO 8020-513-236 Diaphragm Pump 3 Chamber 1.5 GPM 115VAC
SHURFLO 8020-513-236 Diaphragm Pump 3 Chamber 1.5 GPM 115VAC - Intermittent Duty, 60 PSI Demand Switch (adjustable 40-60 PSI), Viton Valves, Santoprene Diaphragm, Polypropylene Housing, 3/8" NPT Female Ports, Has a Power Cord, UL/CSA Recognized, General Industrial Pump.
Reference: SF 8020-513-236
$223.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
SHURFLO 8020-513-236 Diaphragm Pump 3 Chamber 1.5 GPM 115VAC
SPECIFICATIONS:
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (2-Way Op.) Prevents Reverse Flow & 6 Ft. Head Forward Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-194-01, Thermally Protected
VOLTAGE: 115 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI)
Factory Set @ 60 PSI, Turn On 47 PSI 6 PSI
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 10.0 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Polypropylene
VALVES- Viton
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 4.34 Lbs (1.97 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
APPROVALS: UL/CSA Listed
TYPICAL APPLICATIONS: General Industrial
SPECIFICATIONS:
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (2-Way Op.) Prevents Reverse Flow & 6 Ft. Head Forward Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-194-01, Thermally Protected
VOLTAGE: 115 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI)
Factory Set @ 60 PSI, Turn On 47 PSI 6 PSI
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 10.0 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Polypropylene
VALVES- Viton
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 4.34 Lbs (1.97 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
APPROVALS: UL/CSA Listed
TYPICAL APPLICATIONS: General Industrial
