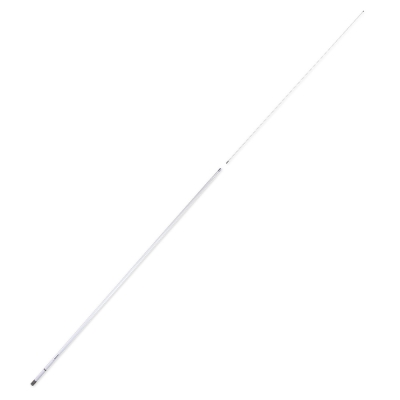

Shakespeare 390 23' Single Side Band Antenna NOT UPS SHIPPABLE
SHAKESPEARE SSB 23FT 390 NOT UPS SHIPPABLE GOES TRUCK. 390.
Reference: 390
In Stock: 2
$631.29
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS
Shakespeare Style 390 SSB
23' LENGTH
WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)
This award-winning performer is often referred to as "the standard of the industry" by virtue of its capabilities and popularity. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass.
Technical Specifications:
Shakespeare Style 390 SSB
23' LENGTH
WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)
This award-winning performer is often referred to as "the standard of the industry" by virtue of its capabilities and popularity. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass.
- Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
- Side feed termination band
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
- Two sections: Base 162"; Tip 112"
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | 2-30 MHz HF band with tuner |
| Bandwidth: | Resonant frequency 10.8 MHz |
| SWR: | N/A |
| Impedance: | (Ohms): N/A |
| Gain: | N/A |
| Max Input (Watts): | 1000 |
| DC Ground: | N/A |
| Termination: | Side Termination |
| Height (feet): | 23 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
