Shakespeare 5215-C-X 3' VHF Antenna
SHAKESPEARE VHF 3FT 5215-C-X WITH 60' RG8X CABLE CONNECTOR. 5215-C-X.
Reference: 5215-C-X
In Stock: 15
$154.99
Free US Shipping on This Item!*
International Shipping Calculator
Earn 17 Citimarine Points with this Purchase!
By buying this product you can collect up to 17 Citimarine points. Your cart will total 17 points that will be converted into a voucher of $1.70 towards your next purchase! Must be logged in to collect points.
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only

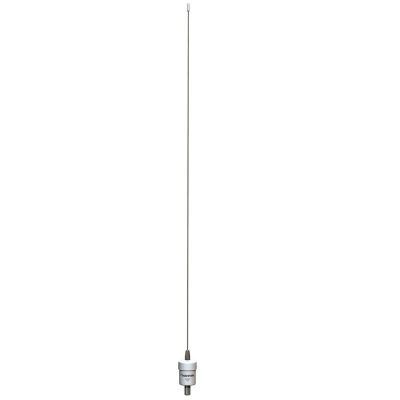

Shakespeare 5215-C-X 3' VHF Antenna 5215-C-X
Shakespeare Style 5215-C-X SQUATTY BODY VHF Marine36" LENGTH, 3dB
END-FED 1/2-WAVE STAINLESS STEEL WHIP
Same as the Style 5215 but comes with 60' RG-8/X low-loss cable and PL-259 connectors.
A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.
- Hermetically sealed, tin-plated copper wire coil
- Stainless steel body and whip
- SO-239 connector
- Includes 60' RG-8/X low-loss cable and PL-259 connectors.
- Mount: Stainless steel "L" bracket supplied, for mast mounting
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | 7 MHz |
| SWR: | 1.5:1 @ 156.8 MHz |
| Impedance: | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 60' RG-8X cable |
| Height (feet): | 3' |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
