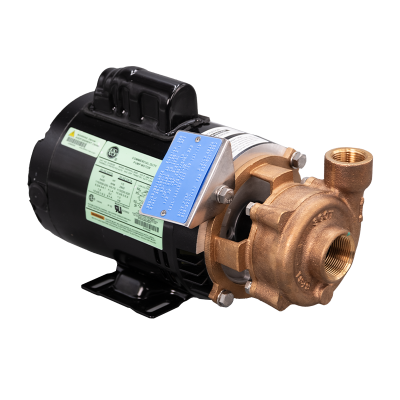

Scot Pump - 35065-2 - 3000 GPH - 115/230V - 50/60Hz - 3.31" Impeller - Marine Centrifugal Pump
Marine Straight Centrifugal Pump - Scot Pump manufactures End Suction All Bronze Centrifugal pumps for seawater applications in the Marine market. These products are made from the highest quality castings and components to provide years of trouble-free service. They are rugged, heavy-duty, simple designs for easy maintenance. Scot has produced pumps for the US Navy and Coast Guard in Titanium, copper-nickel, Inconel, Monel, and bronze alloys 903, 922, 954, and 958.
Replaces:
-Dometic: P3000BXT 115 / 230V
-Dometic: P055S
-Oberdorfer: 109MB Series
Reference: 35065-2 / B35065J331A05YX
$1,059.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
SCOT PUMP - 35065-2 - Marine Straight Centrifugal Pump
Scot Pump manufactures End Suction All Bronze Centrifugal pumps for seawater applications in the Marine market. These products are made from the highest quality castings and components to provide years of trouble-free service. They are rugged, heavy-duty, simple designs for easy maintenance. Scot has produced pumps for the US Navy and Coast Guard in Titanium, copper-nickel, Inconel, Monel, and bronze alloys 903, 922, 954, and 958.
Liquids and Temperatures
The corrosion resistant alloys used are compatible with common liquids including water, water solutions, oils and many commercial chemicals. Severe solvents are not compatible with the Nitrile and should not be pumped.
Suction Lift These centrifugal pumps are not self-priming. They must be installed below the liquid level so that the liquid flows to the pump by gravity (flooded suction). However, if a foot valve is used at the beginning of the suction line, and all air is bled from the pump by manual priming, the pump will lift on the suction side up to 15 feet. Such a system relies entirely on the non-leaking foot valve for starting capability.
| Pump Number | Driver | Motor Chart |
Pump Head |
Impeller | Hertz | RPM | Frame | Max Flow |
Max PSI |
Case Type | Suct | Dish |
| 35065-2 | MP | Stainles Steel |
Bronze | Bronze | 50 | 2900 | J56 | 50 | 15 | NPT | 1.25 | 1 |
| 35065-2 | MP | Stainless Steel |
Bronze | Bronze | 60 | 3500 | J56 | 60 | 21 | NPT | 1.25 | 1 |
Details
| Application | Air Conditioning | Refrigeration | Cooling Water Circulation | Max Flow: 90 GPM | Max. Head: 48ft |
| Technical Data | NEMA 50/ 60 Hz JM Frames | TEFC Motor is Standard | NPT Connections | Marine Bronze case, Impeller and Adapter |
SCOT PUMP Equivalents
| DOMETIC/ OBERDORFER | SCOT PUMP | |
| PART NUMBER | P3000BXT/ 109MB | 35065-2 |
| DRIVER | MP | MP |
| METAL | SEA WATER BRONZE | SEA WATER BRONZE |
| MOTOR CHART | STAINLESS STEEL | STAINLESS STEEL |
| PUMP HEAD | BRONZE | BRONZE |
| IMPELLER | BRONZE / 3.31 in | BRONZE / 3.31 in |
| GPH | 3000 | 3000 |
| VOLTAGE | 115/230V | 115/230V |
| HERTZ | 50/60 | 50/60 |
| RPM | 2900 | 2900 |
| FRAME | J56 | J56 |
| MAX FLOW | 50 | 50 |
| MAX PSI | 15 | 15 |
| CASE TYPE | NPT | NPT |
| SUCTION | 1.25 in | 1.25 in |
| DISCHARGE | 1 in | 1 in |
Features
- All Bronze marine centrifugal pump High Capacity Freshwater or Seawater applications.
- Presicion machined to close tolerances for consistent performance.
- Heavy-Duty cast construction with a close-coupled back pull-out design.
- Enclosed & Semi-open impeller with continuous duty motor.
- Shaft seal rated at 75psi - 5 BAR, with Seawater Buna rubber parts, ceramic stationary and carbon rotating element, stainless steel spring and metal components.
- 2 pole totally enclosed fan cooled IP-44 motor, that meets marine, European, and Coast Guard ignition protected requirements.
