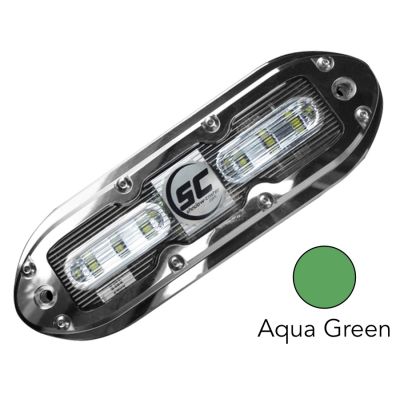

Shadow-Caster SCM-6 Aqua Green Underwater LED Light
Shadow-Caster's Aqua Green SCM Series feature a 316 Stainless Steel housing and polycarbonate lens. 20 feet of submersible grade wire and require no external electronics. With six LEDs, our mid-sized underwater light is the perfect addition to every vessel. 24 Watts of high efficiency LED light. Current draw of 2 Amps @12 Volts. Dimensions are 7.2 x 2.375 x .5" (183x60x13mm).
MFG#: SCM-6-GW-20
Reference: SCM-6-AG-20
Reg Price: $399.00
CPlus Price:
Login for Pricing
What is Citimarine Plus Membership?
Click here for details
Click here for details
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
SHADOW CASTER SCM-6 Aqua Green Underwater Light - 1,200 Lumens
Shadow-Caster's Aqua Green SCM Series feature a 316 Stainless Steel housing and polycarbonate lens. 20 feet of submersible grade wire and require no external electronics. With six LEDs, our mid-sized underwater light is the perfect addition to every vessel. 24 Watts of high efficiency LED light. Current draw of 2 Amps @12 Volts. Dimensions are 7.2 x 2.375 x .5" (183x60x13mm).
Features
High Intensity
Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. The unique design allows maximum light output and maximum LED life (over 40,000 hours).
Robust Design
With Shadow-Caster underwater LED lights, there are no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.
Surface Mounted
Lighting solution features a low profile design that requires no alteration to the main hull.
Wide Input Voltage Range
Shadow-Caster’s underwater LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.
Surge and Reverse Polarity Protection
An innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.
Thermal Protection
Shadow Caster's unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.
Technical Specifications
| Size | 7.2" Length x 2.375" Width x .5" Height |
| Operating Voltage | 10-30 Volts DC w/consistent brightness |
| Current Draw | 2.1 Amps @ 12 Volts |
| Lamp Life | 40,000 Hour |
| Lumens | 1200 |
| Spread Angle | 120 degree |
| Housing | 316 Stainless Steel with Polycarbonate Lens |
| Cable Length | 20' (6m) |
| Shadow Net | Enabled |
| Warranty | 1-Year |
| Country of Origin | USA |
| Power Supply | Internal high efficiency digital switching |
Dimensions
Installing 3 or more lights?
The Shadow Caster Power Distribution Box SCM-PD is an accessory recommended when installing 3 or more lights. This box can be used to distribute power and individually fuse multiple Shadow Caster Underwater Lights. It has ports for up to 6 lights, and each one has its own fuse and own connector. Check out the Shadow-Caster Power Distribution Box SCM-PD
