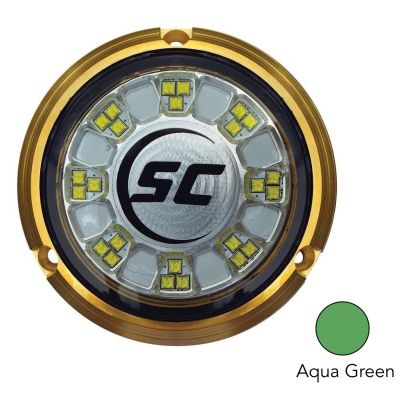

Shadow Caster SCR-24 Underwater LED Lights - Aqua Green Single Color

The SCR-24 underwater light provides your vessel 90 watts of intense LED lighting. The SCR-24’s are designed within a compact 4″ diameter bronze housing for under waterline thru-hull mounting. Single or multicolor version available with variable brightness and a wide array of control options. Up to 10,000 Lumens

MFG#: SCR-24-AG-BZ-10

Reference: SCR-24-AG-BZ-10
Reg Price: $625.00
CPlus Price: Login for Pricing
Join Citimarine Plus and save big on thousands of marine accessories on our site every day with special discounted prices for members. Pricing is often below what we can advertise. Get exclusive special offers and incentives. 1 Year Membership.
What is Citimarine Plus Membership?
Click here for details

Shipping Calculator
This Item Qualified for Free Shipping
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

SHADOW CASTER SCR-24 Underwater Light - Aqua Green Single Color

SCR models are round lights offered in single and multi-color versions. Known for exceptional brightness with 24 high intensity LEDs . SCR is built into durable bronze housing with scratch resistant boroscilicate lens. Manufactured with a thin desighn of .66" thick,and 4" diameter. Surge and reverse polarity protected. Thermal Throttling (C) above water protected. Shadow-Net Enabled on the 24 LED models. Requires 10-40 volt input. Includes a 10" submersible cord. 2 Year Warranty. Made in the USA

Shadow Caster SCR-24-AG-BZ-10 -  Aqua Green Single Color

Features

  • Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
  • Tough, scratch resistant, tempered glass lens with bronze housing — impervious to acetone, solvents and demanding marine environments
  • Transient surge and reverse polarity protection — dramatically prolongs unit life
  • Thermal throttling technology — enables safe operation even out of water
  • From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
  • Full color light “CC’ has 12 built-in colors, and can be enabled with unlimited colors and many other advanced features using Shadow-NET®
  • 2-Year Warranty

Control Options

POWER TOGGLE CONTROL

Quickly toggle power source to advance to next color or brightness level. Used with a single color lights allows for light on/off, fade in/out and strobe.

PUSH BUTTON CONTROL

Connect to any push button controller. Ask about Shadow-Caster®’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements.

Used with a single color lights allows for light on/off, fade in/out and strobe.

SHADOW-NET® CONTROL

Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.

Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.

Technical Specifications

Size 4" Outside Diameter
Operating Voltage 10-40 Volts DC w/consistent brightness
Current Draw 3.5 Amps @ 12 Volts
Power Draw 90W
Lamp Life 40,000 Hour
Lumens Up to 10,000
Spread Angle 120 degree
Housing 316 Stainless Steel with Polycarbonate Lens
Cable Length 10' (3m)
Shadow Net Enabled
Warranty 2-Year
Country of Origin USA
Power Supply Internal high-efficiency digital switching

Dimensions

Shadow Caster SCR-24 Series Dimensions - SCR-24-AG-BZ-10

Installing 3 or more lights?

The Shadow-Caster Power Distribution Box SCM-PD is an accessory recommended when installing 3 or more lights. This box can be used to distribute power and individually fuse multiple Shadow-Caster Underwater Lights. It has ports for up to 6 lights, and each one has its own fuse and own connector.  Check out the Shadow-Caster Power Distribution Box SCM-PD

SCM-PD

Video
