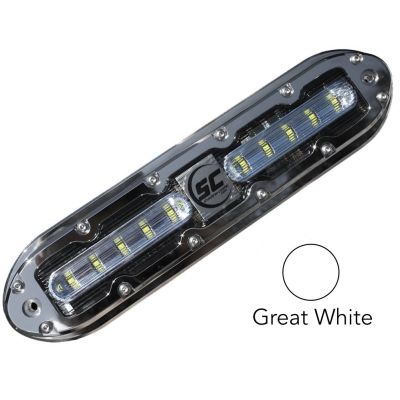

Shadow-Caster SCM-10 Great White Underwater LED Light

Shadow-Caster's Great White SCM Series feature a 316 Stainless Steel housing and polycarbonate lens. 20 feet of submersible grade wire and require no external electronics. With ten high-intensity LEDs, our mid-sized underwater light is the perfect addition to every vessel.42 Watts of high efficiency LED light. Current draw of 3.5 Amps @12 Volts. Dimensions are 10 x 2.375 x .5" (254x60x13mm)

MFG#: SCM-10-GW-20

Reference: SCM-10-GW-20
In Stock: 4
Reg Price: $539.00
CPlus Price: Login for Pricing
What is Citimarine Plus Membership?
Click here for details

Shipping Calculator
Free US Shipping on This Item!
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

SHADOW CASTER SCM-10 Great White Underwater Light - 2,500 Lumens

Shadow-Caster's Great White SCM Series feature a 316 Stainless Steel housing and polycarbonate lens. 20 feet of submersible grade wire and require no external electronics. With ten high-intensity LEDs, our mid-sized underwater light is the perfect addition to every vessel.42 Watts of high efficiency LED light. Current draw of 3.5 Amps @12 Volts. Dimensions are 10 x 2.375 x .5" (254x60x13mm)

Shadow Caster SCM-10


Features

High Intensity

Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. The unique design allows maximum light output and maximum LED life (over 40,000 hours).

Robust Design

With Shadow-Caster underwater LED lights, there are no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.

Surface Mounted

Lighting solution features a low profile design that requires no alteration to the main hull.

Wide Input Voltage Range

Shadow-Caster’s underwater LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.

Surge and Reverse Polarity Protection

An innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.

Thermal Protection

Shadow Caster's unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.

Technical Specifications

Size 10" Length x 2.375" Width x .5" Height
Operating Voltage 10-30 Volts DC w/consistent brightness
Current Draw 3.5 Amps @ 12 Volts
Lamp Life 40,000 Hour
Lumens 2500
Spread Angle 120 degree
Housing 316 Stainless Steel with Polycarbonate Lens
Cable Length 20' (6m)
Shadow Net Enabled
Warranty 1-Year
Country of Origin USA
Power Supply Internal high efficiency digital switching

Dimensions

Shadow Caster SCM-10 Series


Installing 3 or more lights?

The Shadow Caster Power Distribution Box SCM-PD is an accessory recommended when installing 3 or more lights. This box can be used to distribute power and individually fuse multiple Shadow Caster Underwater Lights. It has ports for up to 6 lights, and each one has its own fuse and own connector.  Check out the Shadow-Caster Power Distribution Box SCM-PD

SCM-PD
