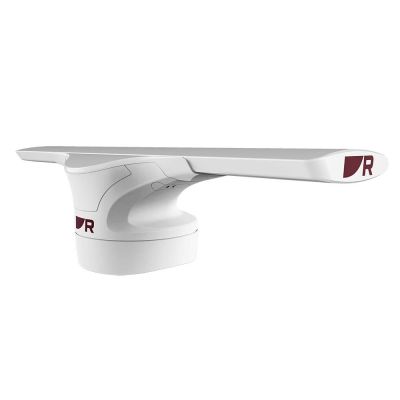

Raymarine Cyclone Pro Radar w/ 4 ft. Open Array & 15M Cables - T70495
Raymarine Cyclone Pro Radar w/ 4 ft. Open Array & 15M Cables - The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence. MFG: Raymarine T70495.
Reference: T70495
In Stock: 1
$9,899.99
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Raymarine Cyclone Pro Radar w/ 4' Open Array & 15M Cables - Raymarine T70495
The Raymarine Cyclone Pro Radar w/ 4' Open Array & 15M Cables - T70495 delivers superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.
Features
- Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
- At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
- Innovative pedestal design conceals cable connections for a cleaner installation
- Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
- Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.
- Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
- RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
- Performance tuned for locating sea birds
- Enhanced Cyclone Bird Mode using CHIRP pulse compression technology
Specifications of the Raymarine Cyclone Pro Radar w/ 4 ft. Open Array & 15M Cables - T70495
| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) | 95 Watts |
| Power consumption (max) | 195 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 96 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 110 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
| Antenna | |
| Beamwidth (vertical) | 25 degree |
| Beamwidth (horizontal) | 1.99 degree |
| Polarization | Horizontal |
| Rotation speed | 12, 24, 36, 48, 60 rpm |
| Length | 1336 mm / 52.59 in |
| Weight | 9 Kg / 19.84 lb |
