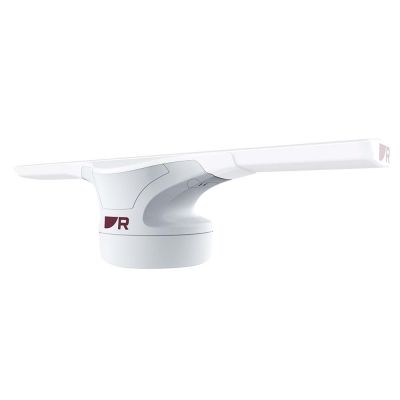

Raymarine Cyclone Pedestal - 55W - E70620
Raymarine Cyclone Pedestal 55W delivers 55-watt output power/6kW equivalent magnetron performance. All Cyclone models integrate seamlessly with Raymarine Axiom, Axiom+, Axiom Pro, and Axiom XL multifunction displays. Raymarine Cyclone Pedestal only. MFG: Raymarine E70620.
Reference: E70620
In Stock: 4
$5,249.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Raymarine Cyclone Pedestal 55W - Raymarine E70620
The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radars are available with a 3, 4 or 6-foot antenna array and two high-power output options.
Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.
Raymarine Cyclone Pedestal - 55W Raymarine's Cyclone Radar Pedestal 55 Watts. The base Cyclone models deliver 55-watt output power/6kW equivalent magnetron performance. All Cyclone models integrate seamlessly with Raymarine Axiom, Axiom+, Axiom Pro, and Axiom XL multifunction displays.All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility.
Specifications of the Raymarine Cyclone Pedestal 55W - E70620
| GENERAL SPECIFICATIONS | |
| Power - Output | 55W |
| Range - Max (Miles) | 72NM |
| Boot Up time | 40 seconds |
| Standy to Transmit | Less than 5 seconds |
| Power Connection | 1x Power connector |
| Data Connection | 1x RayNet connector |
| Transmitter Frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Receiver Characteristic | Linear |
| Receiver Noise | Less than 5 dB |
| POWER SPECIFICATIONS | |
| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc Minimum: 10.2 V dc Maximum: 31.2 V dc |
| Power Consumption (Typical) | 70 W |
| Power Consumption (Max) | 170 W |
| Power Consumption (Standby) | 30 W |
| ENVIRONMENTAL SPECIFICATIONS | |
| Waterproof Rating | IPX6 |
| Operating Temperature Range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum Wind Speed | 100 Kts |
