Raymarine Axiom 12 MFD - 12" Display (GPS Chartplotter) Models

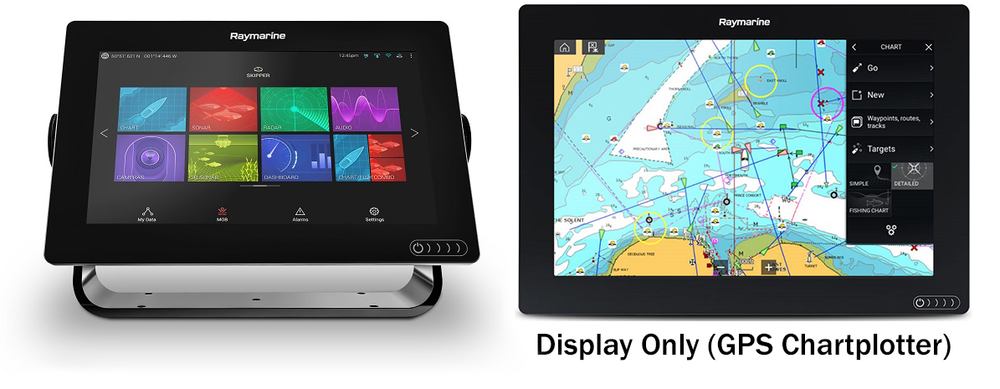

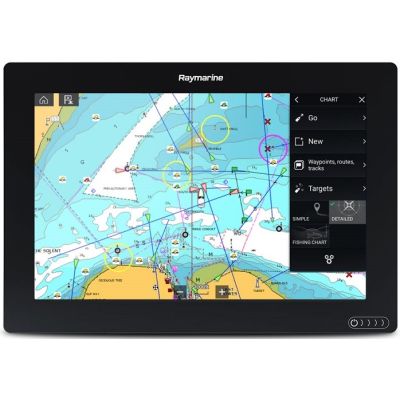

Raymarine AXIOM 12 - Touch Screen Multifunction Display - Display Only (GPS Chartplotter)

A powerful new multifunction navigation system from Raymarine. With built-in RealVision 3D™ sonar (RV Models only), the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water.

Blazing Fast Performance and Power - At Your Finger Tips

Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones (a future LightHouse 3 software update required for mobile app compatibility). Axiom includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.

Stay Safe with Flir Thermal and Radar

Uncluttered Radar: New radar modes simplify operation along with quick access to sensitivity controls and enhanced status and range displays.

LightHouse Live View Menu: Lets you see radar adjustments in real time.

Enhaced Thermal Awareness: Exclusive FLIR ClearCruise™ thermal video analytics technology actively monitors the scene and provide alerts when any non-water objects enter the camera’s field of view.

Specifications:

Model	Raymarine Axiom 12
Screen Size	12.1" Optically Bonded LCD
Display Resolution	1280 x 800 WVGA (HD) IPS
Screen Type	Multitouch
Mounting Options	Top /Flush / Bracket / Rear Mounting
Networking	1 x 10/100 Mbits/Network (RayNet)
Waterproofing	IPX6 / IPX7
Memory Card Slot	1x MicroSD
Wi-Fi	WiFi - 802.11 b /g
Bluetooth	Bluetooth 2.1 + EDR power class 1.5 (supports AVRCP 1.0)
Radar Compatible	Yes
Thermal Night Vision Compatible	Yes - Compatible with FLIR M100 and M200 Cameras
Video over IP Camera Support	Add up to 10 Video over IP network cameras
Built-in Sonar	Model dependent
External Sonar Compatible	Yes - Support for Digital and CHIRP sonar modules
GPS	Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 72 Channel
Optimal Remote Controls	RMK-10
AIS	With optional receivers and transceivers
Audio Integration	Support for NMEA2000 compatible audio devices
Voltage	12V DC (8 V to 16 VDC)
Operating Temperature	-13º F to +131º F (-25º C to +55º C)
NMEA2000	NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter

Dimensions

	Axiom 12
	mm	in
A	314	12.36
B	217	8.54
C	226.8	8.93
D	79.3	3.12
E	183	7.2

More Features of the Axiom

More information on Raymarine Axiom

Raymarine Axiom LightHouse Update - 3.4 Version

Raymarine always aims to stay on the cutting edge in the world of marine electronics. Their latest introduction of the Raymarine Axiom MFD with it’s all-new, powerful and intuitive Lighthouse 3 operating system has really shaken things up in the boating and sport fishing world. I will work to add information and links to all the newest updates to the Lighthouse 3 operating system below, as well as their benefits.

Learn More

Raymarine Axiom MFD & Flir M100, M200 Thermal Camera

Raymarine debuted their brand new Axiom MFDs (which won a MIBS 2017 Innovation Award), and Micro-Talk™ Wireless Performance Sailing Gateway technology, while FLIR (parent company of Raymarine) launched their M100 and M200 thermal cameras.

Luckily, the Citimarine Store reconnaissance team were out at the show in full force, and we were able to gather intel on each of these amazing new devices.

Learn More

Warranty and Liability On Your Raymarine Axiom 12

1. Raymarine’s Global Limited Warranty is effective for qualifying products purchased on or after 1st July 2017. Raymarine UK Ltd. and its affiliates (“RAYMARINE”) warrants RAYMARINE products purchased directly from RAYMARINE, from an approved RAYMARINE dealer (visit raymarine.com/DealerLocator to find and contact your local approved RAYMARINE dealer), or installed on a new vessel by an authorized boat builder, known as the Original Equipment Manufacturer (OEM) (the “Products”), to be free from defects in material and workmanship for;(i) Dragonfly Products for one (1) year (“Dragonfly Limited Warranty Period”); and (ii) Standard Products for two (2) years (“Standard Limited Warranty Period”); from (a) the date the Products were first purchased; or (b) in the case of Products installed on a new vessel by an authorized OEM, the date the vessel was first delivered (the “Purchase Date”) to the first retail customer (the “Original Customer”).
2. THE LIMITED WARRANTIES AND REMEDIES IN THE GLOBAL LIMITED WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES THE OWNER SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM JURISDICTION TO JURISDICTION. IN NO EVENT SHALL RAYMARINE UK LTD. OR ITS AFFILIATES BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, INABILITY TO USE, IMPROPER RELIANCE ON, OR FROM ANY DEFECTS IN THE PRODUCT. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION ON INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
3. Subject to the terms, conditions, limitations and exclusions in the Global Limited Warranty, all RAYMARINE Products are warranted to be free from defects in material or workmanship for a period of two (2) years from the date the Product was purchased by the Original Customer (the “Standard Limited Warranty Period”). During this period and for the Original Customer, RAYMARINE will, at its sole option, repair or replace any components that fail in normal use. If the Standard Limited Warranty applies to you, RAYMARINE will not charge you for parts or labour for warranty repairs or replacements. However, the cost of transporting your warranted Product to RAYMARINE for repair or replacement is your responsibility and is not covered by RAYMARINE.
4. Subject to the terms, conditions, limitations and exclusions in the Global Limited Warranty, and excluding Dragonfly Products, Warranty Replacement Product, Refurbished Product and Products used for regular commercial, military, law enforcement or related purposes, all new Products registered with Raymarine within ninety (90) days from the date the product was first purchased by the Original Customer are warranted to be free from defects in material or workmanship for a period of three (3) years from the date the Product was purchased by the Original Customer (the “Extended Limited Warranty Period”). During this period and for the Original Customer, RAYMARINE will, at its sole option, repair or replace any Product components that fail in normal use. Upon successful registration of the Product, the 3-Year Extended Limited Warranty replaces the 2-Year Standard Limited Warranty.
5. By registering your Product with RAYMARINE at raymarine.com/WarrantyRegistration, you will receive important product announcements, updates and other information designed to enhance the use and enjoyment of your Product. Additionally, except for Dragonfly Products, Warranty Replacement Product, Refurbished Product and Products used for regular commercial, military, law enforcement or related purposes, if you register your Product with RAYMARINE at raymarine.com/WarrantyRegistration, the 2-Year Standard Limited Warranty is upgraded and replaced by the 3-Year Extended Limited Warranty at no additional cost. To qualify for the 3-Year Extended Limited Warranty upgrade, the product registration must be completed within ninety (90) days from the date the product was first purchased by the Original Customer.
