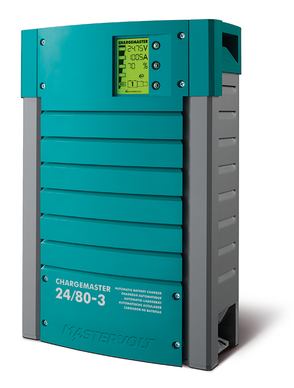

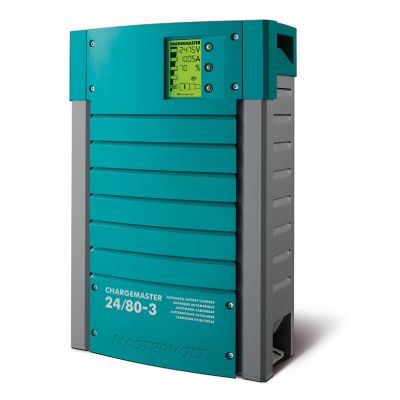

Mastervolt ChargeMaster 24/80-3 Marine Battery Charger - 24V, 80 Amp, 3 Battery Outlets

The Mastervolt ChargeMaster 24/80-3 battery charger guarantees fast, complete charging of batteries no matter where you are. Charge multiple battery banks simultaneously. Nominal output voltage: 24V, Total charge current: 80 Amp, Number of battery outlets: 3. Battery capacity range: 160-800 Ah, Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz. Dimensions: 17.0 x 10.9 x 5.9 inch, Weight: 17.6 lbs.

Part number: 44020800


Item Discontinued. Replaced by Chargemaster Plus 24/80-2 C-Zone

Mastervolt Logo

Reference: 44020800

Shipping Calculator
Free US Shipping on This Item!
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Mastervolt ChargeMaster 24/80-3 Marine Battery Charger (Mastervolt 44020800) - Power You Can Rely On

Mastervolt 44020800
Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or commercial purposes, with Mastervolt you always have power you can rely on! The power to be independent.

Features

-3-Step+ charging technology for fast and complete charging.
-Safe and complete charging due to standard safety features.
-Memory function prevents overcharging in case of an unstable power supply.
-Clear control panel.
-Charging capacity up to 1000 Ah.

-Easy installation.
-Built-in system functionality (MasterBus) in combination with other Mastervolt products.
-Suitable for any type of battery, including Lithium Ion batteries
-Supplies your system without battery
-Can charge multiple battery banks simultaneously

ChargeMaster Battery Chargers

Make the most of your batteries with the ChargeMaster, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. Moreover, all ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection. You also have the option of central, local or remote monitoring, configuration and control of your system.

Charging your Batteries with Every Voltage

The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1 regulation gets the most out of limited generator capacity.


Strong & Sturdy Connections

Metal-on-metal fitting gives a firm connection, and prevents corrosion or overheating of contact surfaces.

Charging Multiple Battery Banks

The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two metres of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.

General specifications: Mastervolt ChargeMaster 24/80 - 44020800
Nominal output voltage 24V
Total charge current 80 A
Number of battery outlets 3
Charge current second output 10 A
Charge current third output 10 A
Battery capacity range 160-800 Ah
Nominal input voltage 120/230 V (90-265 V), 50/60 Hz
AC connection connector strips
Supplies your system without battery yes
Display/read-out LCD display
Dimensions, hxwxd 432 x 277 x 150 mm
17.0 x 10.9 x 5.9 inch
Weight 8 kg
17.6 lb
Fastening with supplied mounting bracket or 4x screw for wall mounting or 4x screw for floor installation
Approvals CE, ABYC A-31, SAE J1171/ISO8846 ignition protected
Technical specifications: Mastervolt 44020800
Charge characteristic IUoUo, automatic / 3-step+ for gel/AGM/wet/Lithium Ion
Charge voltage Bulk 28.8 V
Charge voltage Absorption 28.5 V
Absorption time 4 hours
Charge voltage Float (wet batteries) 26.5 V
Charge voltage Float (gel/AGM batteries) 27.6 V
Temperature compensation -60 mV/ °C
-33 mV/ °F
Voltage compensation automatic
Power consumption (DC side) < 5 mA
Full load consumption (230 V AC) 2700 W
Current Control function yes, through MasterBus
Power factor control ≥ 0.98
Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40 °C
-13 to 140 °F
Sound level < 52 dBA at 1 mtr
Protection degree IP23
CSI/DC alarm yes, using a Multipurpose Contact Output (code 77030500)
Protections over temperature, over load, short circuit, high/low battery voltage
Cooling vario fan
MasterBus compatible yes

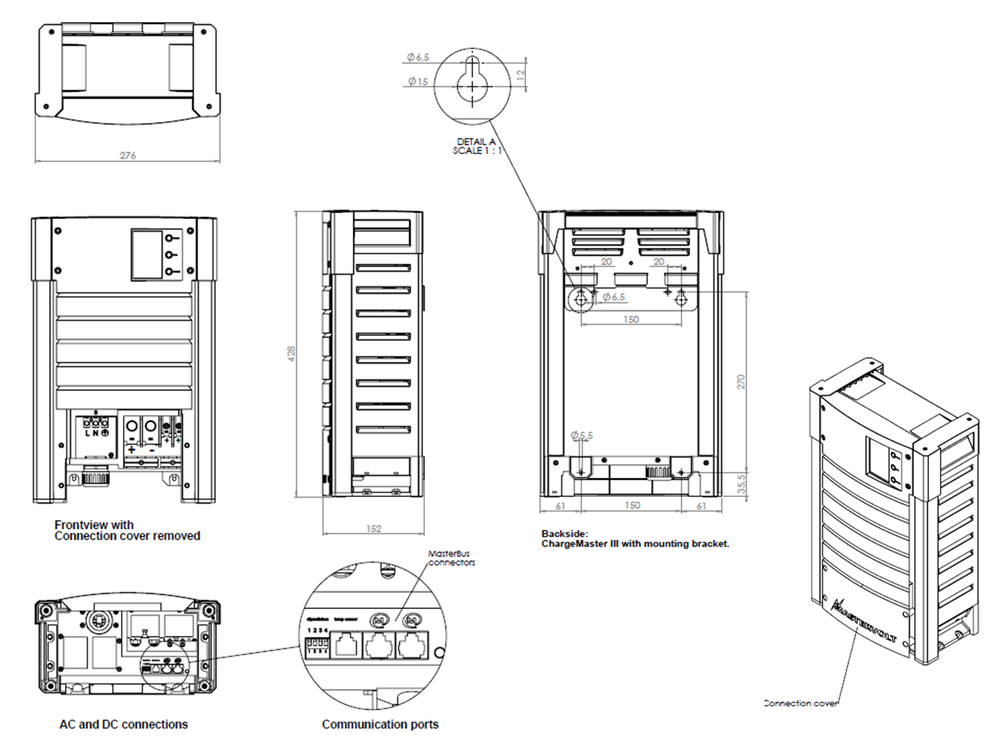

Mastervolt 24 Volt, 80 Amp Battery Charger
