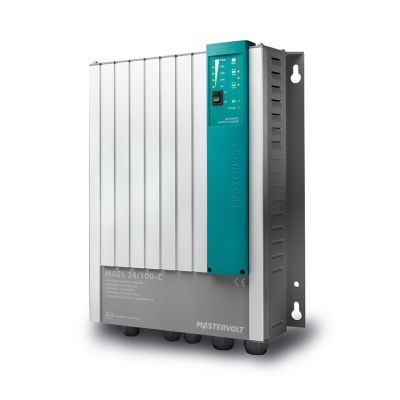

Mastervolt Mass 24V / 100A w/ DNV & Lloyds Certification Marine Battery Charger - 40021006
Even under extreme conditions, The Mastervolt Mass 24/100 battery charger operates faultlessly; round-the-clock output when necessary. MTBF of 280,000 hours at full capacity, 24/100 use. *DNV & Lloyds Certification. Nominal output voltage: 24V, Total charge current: 100 Amp. Nominal input voltage: 230 V (180-265 V), 50/60 Hz. Dimensions: 16.5 x 12.5 x 5.1 inch. Mass 24/100
Part number: 40021006
Reference: 40021006
Reg Price: $3,289.99
CPlus Price:
$3,092.59
Join Citimarine Plus and save big on thousands of marine accessories on our site every day with special discounted prices for members. Pricing is often below what we can advertise. Get exclusive special offers and incentives. 1 Year Membership.
What is Citimarine Plus Membership?
Click here for details
Click here for details
Free Shipping on $99 Order
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Mastervolt Mass 24/100 (40021006) Marine Batterry Charger - 24 Volt, 100 Amp with DNV and Lloyds Certification. For the Toughest Tasks.
Mass battery chargers are designed for toughest conditions in professional, semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass series operate faultlessly, giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF (mean time between failures) of 280,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.
-Designed for the most difficult conditions.
-Lightweight, stainless steel, anodised aluminium casing.
-Coating of internal components prevents damage from damp or condensation to ensure a longer lifespan.
-Insensitive to electromagnetic effects from other devices.
-Suitable for every type of battery, also charges entirely empty batteries.
-Delivered as standard with temperature sensor.
-Full power at temperatures of up to 45˚C.
-Load capacities from 80 to 1000 Ah or more.
-Stable power supply of 24 and 48 V, even without batteries.
-Load sharing possible in case of limited power supply.
-Parallel switching possible using multiple battery chargers.
-Customised monitoring and controls at any location.
-Fast and easy installation with MasterBus, Mastervolt’s single cable system.
-Reliable charger/supply for GMDSS.
-Certified by Germanisch Lloyd, Lloyd, Bureau Veritas (24/75 & 24/100 models only) and RRR, RS; connections in accordance with CE, ABYC A-31 and IEC60945.
-Type approval for application in safety zones A, B and C.
For Professional Use: GMDSS
Professional users will benefit from a front display with GMDSS (Global Maritime Distress and Safety System) alarm functions. The GMDSS is an internationally agreed-upon set of safety procedures, types of equipment, and communication protocols that is a requirement for the SOLAS (Safety Of Life At Sea) convention and uses DSC and satellite communication.
Made Tough by Smart Design
The E-mark Certified Mass battery chargers are extremley strong, designed to withstand heavy vibrations and shocks. Their top quality components meet the highest possible specifications, while the smart and extra robust mounting adds to a professional end result.
MasterBus Compatible
All you need is a single cable with one connection, which means fast and easy installation, plus centralised monitoring, configuration and operation of your system with a MasterView panel. The Mass battery charger is fully MasterBus compatible.
| General specifications: Mass 24/100 w/ DNV - 40021006 |
|
| Nominal output voltage | 24V |
| Total charge current | 100 A |
| Number of battery outlets | 1 |
| Battery capacity range | 200-1000 Ah |
| Nominal input voltage | 230 V (180-265 V), 50/60 Hz |
| Supplies your system without battery | yes |
| Display/read-out | LED display |
| Dimensions, hxwxd | 420 x 318 x 130 mm 16.5 x 12.5 x 5.1 inch |
| Weight | 7.7 kg 17.0 lb |
| Approvals | CE, ABYC A-31, RRR, RS, Lloyds, DNV, GL |
| Technical specifications: 24/100 w/ DNV - 40021006 |
|
| Charge characteristic | IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion |
| Charge voltage Bulk | 28.5 V |
| Charge voltage Absorption | 28.5 V |
| Absorption time | 4 hours |
| Charge voltage Float (wet batteries) | 26.5 V |
| Charge voltage Float (gel/AGM batteries) | 27.6 V |
| Temperature compensation | -60 mV/ °C -33 mV/ °F |
| Voltage compensation | voltage drop compensation in DC cables up to 3 V |
| Power consumption (DC side) | < 1 mA |
| Full load consumption (230 V AC) | 3500 W |
| Current Control function | yes, through MasterBus |
| Power factor control | > 0.95 |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 45 °C -13 to 176 °F |
| Sound level | < 48 dBA at 1 mtr |
| Protection degree | IP23 |
| CSI/DC alarm | integrated in the battery charger as standard |
| Protections | over temperature, over load, short circuit, high/low battery voltage |
| Cooling | vario fan |
| MasterBus compatible | yes |
