Mastervolt ChargeMaster Plus 24V / 110A - 2 Banks CZone Marine Battery Charger - 44321105

The Mastervolt ChargeMaster Plus 24/110-2 CZone is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges a maximum of three batteries in a fast and safe way and works anywhere in the world. Models with the addition CZone do not only support MasterBus, but also support CZone and NMEA 2000 communication, without the need of additional interfaces.

Part number: 44321105

 chargemaster plus 24/60-3

Reference: 44321105
In Stock: 1
Reg Price: $2,456.00
CPlus Price: Login for Pricing
Join Citimarine Plus and save big on thousands of marine accessories on our site every day with special discounted prices for members. Pricing is often below what we can advertise. Get exclusive special offers and incentives. 1 Year Membership.
What is Citimarine Plus Membership?
Click here for details

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Mastervolt ChargeMaster Plus 24/110-2 CZone Marine Battery Charger - 44321105

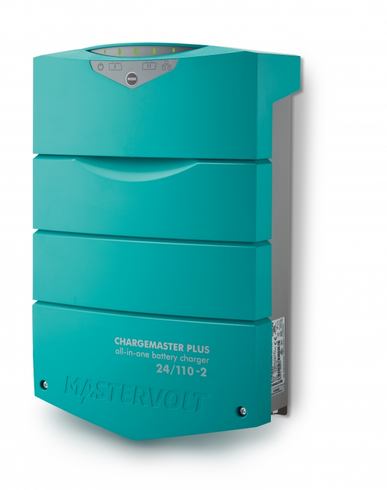

Mastervolt ChargeMaster Plus 24/110-2 CZONE 44320605
With the new Battery’s Best Friend architecture, the ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method.

Global Charging

The Mastervolt ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, ChargeMaster Plus is CE, E-mark, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.

System Simplicity

Nowadays, equipment must be self-explaining. The Mastervolt ChargeMaster Plus 24/110-2 displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

44320605 Chargemaster Plus CZone 24/60-3

Powerful Connections thanks to CZone Integration

In modern applications, all electrical components work together. The CAN-based MasterBus enables the ChargeMaster Plus to communicate with displays, shunts and power systems including communication standards like CZone®, NMEA 2000 and CANopen (through additional interfaces).

Models with the addition CZone do not only support MasterBus, but also support CZone and NMEA 2000 communication, without the need of additional interfaces. The Mastervolt ChargeMaster Plus 24/110-2 can be configured via MasterBus or will accept a CZone configuration file just like any other CZone device. Other communication standards like ModBus, CANopen, LinBus, etc. are supported via additional interfaces.

Features:

  • Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
  • Combine Lithium Ion, Gel or AGM, and large or small  battery banks on a single battery charger
  • Charges multiple batteries while being underway.
  • Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C.
  • Safe Charge: quickly recognize the State of Charge for extended battery life.
  • Very wide operating range of 80-275 V AC, 35-70 Hz.
  • Compact, easy to connect and quick to install.

Technical Specifications for the Mastervolt ChargeMaster Plus 24/110-2 - 44321105

Nominal output voltage 24 V
Secondary output voltage 14.25 /28.5 V (12/24 V)
Secondary output current 15 A at 12 V / 20 A at 24 V (adjustable)
Max. charge current per output 110 A
Max. AC current (230 V / 120 V) 15.75 A / 31.5 A
Total charge current 110 A at 28.8 V
Number of battery outlets 2 (max.)
Battery capacity range 400-1000 Ah
Nominal input voltage 120/230 V (80-275 V) 50/60 Hz
AC connection screw terminals, suitable up to up to 6 mm²
Power supply mode yes
Display/read-out LED
Dimensions, hxwxd 384 x 250 x 127 mm
15.1 x 9.8 x 5.0 inch
Weight 6.3 kg
13.9 lb
Approvals CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick
Charge characteristic IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option
Temperature compensation -60 mV/°C / -76 mV/°F; incl. temperature sensor
DC voltage compensation through automatic compensation or MasterShunt
Power consumption (DC side) < 2 mA (MasterBus off)
Current Control function yes, through MasterBus or CZone
Power factor control yes, > 0,98
Temperature range (ambient temp.) -25 °C to 80 °C, derating > 40 °C
-13 °F to 176 °F
Cooling vario fan
Protection degree IP23, vertical mounting
Protections over-temperature, overload, short circuit, high/low battery voltage, ignition protection
Charger Status Interface (alarm contact) yes, using a Multipurpose Contact Output (code 77030500)
