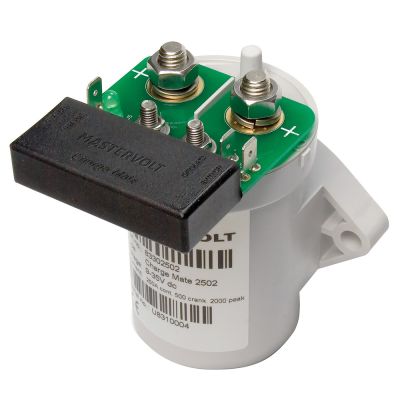

Mastervolt Charge Mate 2502 - 83302502
Mastervolt Charge Mate 2502
Reference: 83302502
$322.02
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Mastervolt Charge Mate 2502 - 83302502
A secondary battery is becoming increasingly common. As a second battery can prevent the main battery from depleting and being unable to start, this seems like a safe and reliable solution.
The second battery, however, also has to be charged regularly. The Mastervolt Charge Mate 2502 connects both batteries during charging and keeps them isolated when discharging.
The Mastervolt Charge Mate 2502 is especially practical for smaller systems.
General Specifications:
- Battery voltage: 12/24V
- Max. current: 500 A
- Number of modes: On, off, auto, start to assist
- Dimensions, hxwxd: 90 x 80 x 85 mm/3.5 x 3.1 x 3.3 inch
- Weight: 0.65 kg/1.4 lb
- Compliance: CE
Technical Specifications:
- Power consumption: switch open: < 1 mA at 12/24 V DC
- Inrush current (250 ms): 2000 A
- Switch on voltage: 13-15 V (12 V) / 26-30 V (24 V)
- Switch on delay: 30 sec
- Switch off voltage: < 12.25 V... > 15 (12 V) / < 25.5... > 30 V (24 V)
- Switch off delay: 3 minutes
- Relay: Electro-mechanical
- Temperature range (ambient temp.): -40 °C to 60 °C/-40 °F to 140 °F
- Protection degree: IP21
