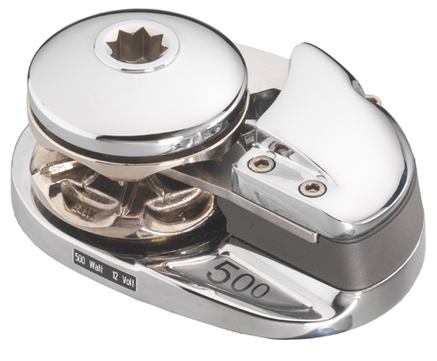

Lofrans' Project 500 Chrome Vertical Windlass - 500W - Low Profile

The Project 500 is a robust, powerful rope/chain windlass capable of managing all chain rodes for bluewater cruisers and coastal cruisers alike. Ideal windlass for boats from 23'-33'.  Low profile versions keep the foredeck uncluttered and visually pleasing.

The motors of the Project windlasses are designed specifically to provide high torgue in every anchoring situation and their anchoring power can reach 45m / min. In case of function failure of the solenoids, there is the ability to bypass the solenoid with a connection to the terminal "E" and lift up the anchor.

All motors have IP66 rate, their body has double zincates and they are painted with a polyester coating. Also, they are sealed by a sequence of seals in order to prevent water intrusion.

Key Features

• Luxury chromed bronze base and drum
• Special watertight stainless steel ball bearing in the base
• With drum or Low profile
• Indepent Gypsy and drum operation
• Rope and chain combination Gypsy
• Manual chain release
• Manual override
• Rope chain management by the spring loaded arm
• Chain counter magnet pre-installed as standard
• Heavy duty two speed built in solenoids IP67 rated electric motor
• Anodised marine aluminium gearbox
• Control Box build in

Specifications for LW7901LP

Standard Equipment

• Two footswitches
• Watertight control box
• Clutch/manual operation handle
• Neoprene mounting gasket

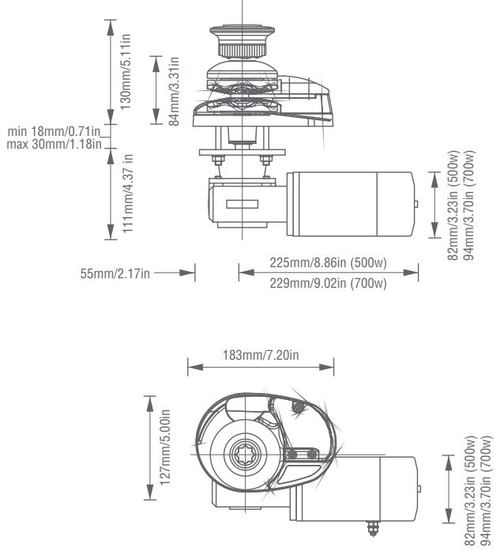

Dimensions
