KoolAir TPM1000 - 115/230V - 1000 GPH

KoolAir TPM1000 - 115/230V - 1000 GPH

KoolAir TPM1000 - 115/230V - 1000 GPH

Customer ratings and reviews

The Koolair TPM1000 is a 115/230 Volt TEFC (Totally Enclosed Fan Cooled Motor Enclosure) model.  Is a sealless centrifugal magnetic drive seawater circulation coolant pump. It is most commonly used for marine air conditioning. Model generates a maximum flow of 17 gallons per minute as a result with a maximum head of 27 feet at 11.7 PSI 1000 gallons/hr. Replaces part number: 5011374B (Webasto)

Part Number:
TPM1000
  KoolAir Marine Pumps

TPM1000

By buying this product you can collect up to Your cart will total 32 points that will be converted into a of $3.20 towards your next purchase! Must be to collect points.

More info

KoolAir TPM1000 Marine Pump - 115/230V - 1000 GPH

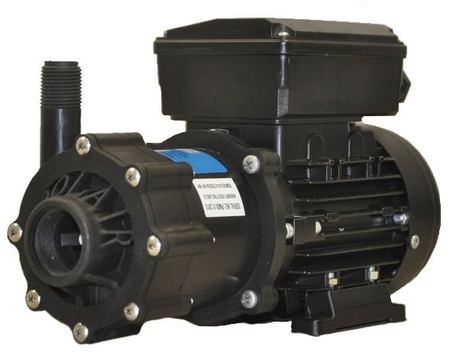

KoolAir TPM1000 Marine A/C Pump

The KoolAir TPM1000 dual 115/230 voltage, TEFC magnetic drive seawater circulation coolant pump is most commonly used for marine air conditioning. The Koolair TPM1000 is a 115/230 Volt TEFC (Totally Enclosed Fan Cooled Motor Enclosure) model. It is a sealless centrifugal magnetic drive seawater circulation coolant pump. Model generates a maximum flow of 17 gallons per minute as a result with a maximum head of 27 feet at 11.7 PSI. Most commonly used on your boat or yacht for marine air conditioning while circulating seawater.

Key Benefits

  • To withstand thermal overloads, hence without failure, the pump is run dry protected. The pump end most is certainly protected from thermal meltdown in a run dry event.
  • Materials exposed to the solution (wet end) are Reinforced Polypropylene, Buna N and Ceramic Magnet.
  • The inlet connection is a 1” FPT and the outlet is ½” MPT.
  • Includes fully integrated, heavy duty base.
  • The motor is a 1 Phase, Dual 115/230 Volt, 1/8 HP motor on either 50 or 60 HZ.
  • Maximum internal pressure is 50 PSI.
  • The maximum liquid temperature is 180 F or 82 C.
  • The pump is not self-priming and requires flooded suction.
  • ISO 8846 Marine Ignition Protected.

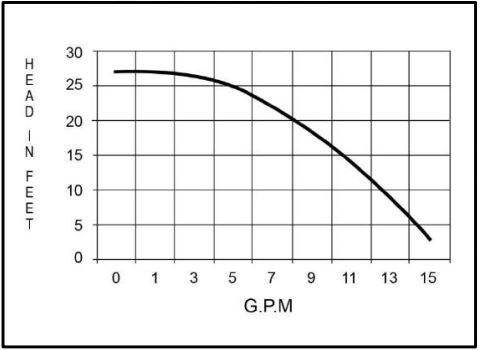

Performance Curve

Webasto KoolAir Performance Curve

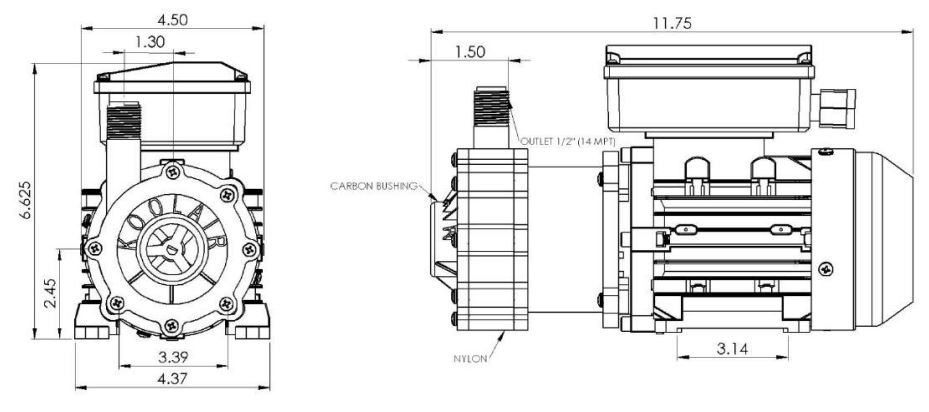

Dimensions

Webasto KoolAir TPM1000

Technical Specifications

AttributeInformation
Weight12 lbs
Maximum Flow

17.2 GPM (54.8 LPM)

Maximum Head

27 Feet of Head @ 11.7 PSI

Maximum Internal Pressure

50 PSI

Maximum Liquid Temperature

180° F (82° C)

Inlet

1″ FPT

Outlet

1/2″ MPT

Hertz

50/60 Hz

Voltage

115/230 Volt

Phase

Single Phase (1 PH)

Watts

216/207

Amps

1.6

Horsepower

1/8 HP

RPM

3450



KoolAir Marine Air Conditioning Pump
