KMGB-19, 19" Glass Bridge Display Marine Monitor

Sunlight Readable 19" Glass Bridge Marine Display. Inputs include 3-VGA, 2-DVI, 3-Composite and 1-S-Video, built in picture in picture (PIP) and picture by picture (PBP). Incl VGA cable, power cable, control panel, hardware, and manual.


KEP Marine displays are no longer available. Please check Seatronx for a replacement

Reference: KMGB-19

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

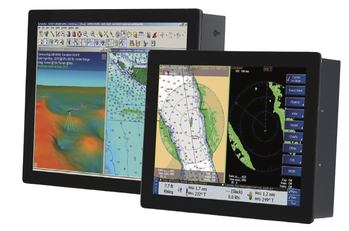

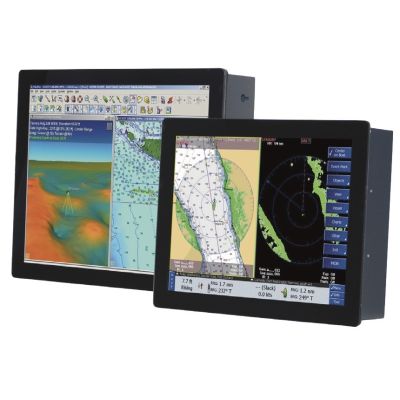

Aydin Marine KMGB-19 - 19" Glass Bridge Display

Aydin Marine KMGB-19

AYDIN MARINE / KEP Sunlight Readable Displays KEPM GB are designed with the same technology and features as our KEPM displays but with a special mounting option. The KEPM GB glass bridge displays allow maximum screen size in the smallest spaces available. They are ideal for helms with limited space and can be mounted side by side to save even more precious space. Display adjustments and settings are controlled using a remote unit which can be mounted near the display or hidden in the cabin space. All KEP Marine monitors can communicate with RS-232 control systems such as Crestron and AMX.

Display Features

Modern sleek design
Exceptional sunlight-viewing
Maximized screen size for space-restricted helms
Compatible with RS232 control systems such as the popular Bridgeview and Crestron
Large selection of inputs
Night mode and dim to black


Display Type: 17” LCD TFT Monitor
Brightness: 1000 Nits
Viewing Angle: H89/89 V89/89
Aspect Ratio: 4:3
Contrast Ratio: 2000:1
Display Colors: 16.7M
Video Inputs: 2 x VGA, 3 x DVI, 3-Composite
Max Resolution: 1280 x 1024
Temperature: Operating: 0° to +60° C
Storage: -20° to +60° C
Power: Voltage: 12/24 VDC
Dimensions: Height: 13.930”
Width: 16.892”
Depth: 3.277”
