KMGB-17, 17" Glass Bridge Display Marine Monitor

Sunlight Readable Glass Bridge 17" Marine Display. Inputs include 3-VGA, 2-DVI, 3-Composite and 1-S-Video, built in picture in picture (PIP) and picture by picture (PBP). Incl VGA cable, power cable, control panel, hardware, and manual.


KEP Marine displays are no longer available. Please check Seatronx for a replacement

Reference: KMGB-17

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

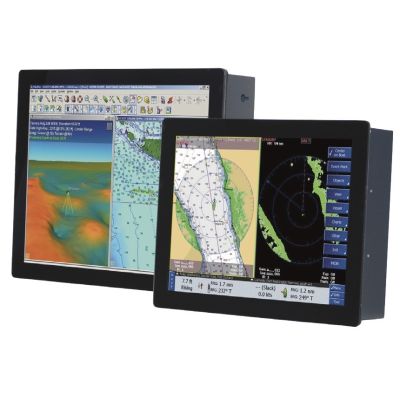

Aydin Marine KMGB-17 - 17" Glass Bridge Display

AYDIN MARINE / KEP Sunlight Readable Displays are designed for the Marine industry. These rugged displays deliver crisp text, fast response and optimized viewing angles under any outdoor lighting conditions due to out bonding technology. The KMGB series is ideal for high sunlight areas such as cockpits, decks and bright
pilothouses. The sleek design allows maximum screen size in the smallest spaces available.

Display Features

Modern sleek design
Exceptional sunlight-viewing
Maximized screen size for space-restricted helms
Compatible with RS232 control systems such as the popular Bridgeview and Crestron
Large selection of inputs
Night mode and dim to black


Display Type: 17” LCD TFT Monitor
Brightness: 1000 Nits
Viewing Angle: H85/80 V85/85
Aspect Ratio: 4:3
Contrast Ratio: 1000:1
Display Colors: 16.7M
Video Inputs: 2 x VGA, 3 x DVI, 3-Composite
Max Resolution: 1280 x 1024
Temperature: Operating: 0° to +70° C
Storage: -20° to +60° C
Power: Voltage: 12/24 VDC
Dimensions: Height: 12.716”
Width: 15.376”
Depth: 3.277”
