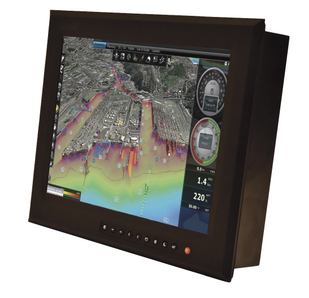

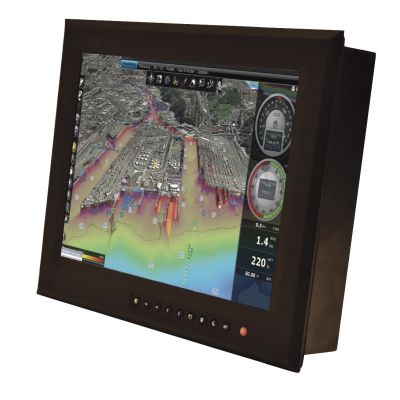

KM-24, 24" Marine LCD Display
AYDIN MARINE (KEP) KM-24 Sunlight Readable 24" Marine Display. Inputs include 3-VGA, 2-DVI, 3-Composite and 1-S-Video, built in picture in picture (PIP) and picture by picture (PBP). Includes VGA cable, power cable, mounting hardware, and manual.
MFG#: KM-24
KEP Marine displays are no longer available. Please check Seatronx for a replacement
Reference: KM-24
$9,750.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Aydin Marine KM-24 - 24" Display
AYDIN MARINE / KEP Marine’s In-Sight™ displays, KM, are designed for the marine industry. These rugged displays deliver crisp text, fast response and optimized viewing angles under any outdoor or indoor lighting conditions with or without touch screen. In-Sight’s advanced LCD contrast and brightness enhancements make the entire screen readable - even in direct sunlight. As the sunlight becomes more intense contrast and screen brightness increase to improve the viewer comfort and confidence.
Features
Sunlight Readable
Wide format
Dimmable to black
High brightness, 700nit
Video and VGA inputs
Specifications
Parameter Value
LCD Display 24" TFT Active Matrix Panel
Brightness 700nit
Max. Resolution 1900x1200 Wide
Contrast (800:1)
View Angle Wide viewing angle
Display Colors 16.7M
Operating Temp (-5 to 55°C)
Non Operating Temp (-20 to 70°C)
Standard Inputs 3-VGA’s (RGB Analog 0.7V Peak to Peak) UXGA, 2-DVI’s SXGA
Standard Video Inputs 3-Composites, 1-S-Video
Color KEP Gray
Input Power 12/24Vdc universal input
Dimming Wide dimming range to Black
Red Mode YES
Picture-n-Picture Yes three stages
Front Window AR hard coated glass
Bezel & Rear Case Marine aluminum UV protected powder coating
Enclosure Nema4/IP66 from front
EN60945 Yes
Communications YES RS232 or Ethernet
Controls Front Mount

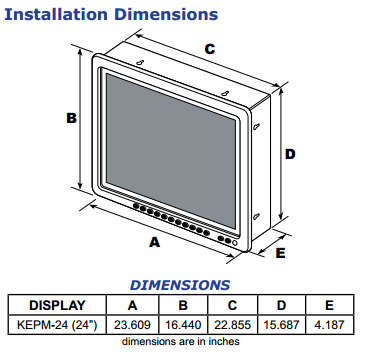

Bezel Dimensions, Cutout Dimensions A:23.609", B:16.44", C:22.855", D:15.687", E:4.18"
Install Depth 3.682”
Weight 19.84 lbs
Humidity 95%
FCC, CE, IC Approved Yes
WEEE & ROHS Yes
DDC Compliant Yes
Auto Video Detection Yes
Auto Video Scaling Yes
