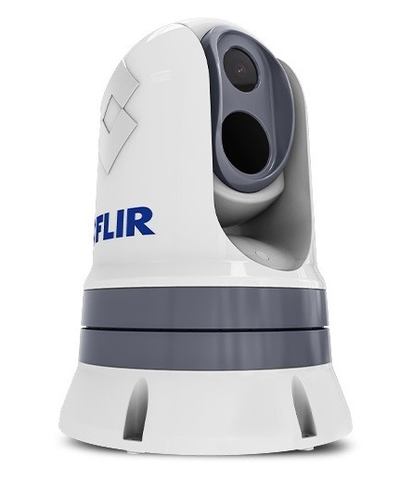

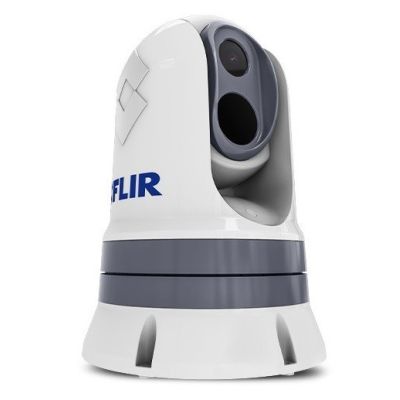

M364C Dual Payload Thermal Camera No JCU 640 x 512 24D HFoV
FLIR M364C Dual Payload Thermal Camera No JCU 640 x 512 24D HFoV has a high definition camera with low light and one of the most advanced FLIR thermal imaging cores, provides an elite level of awareness in the water. Both cameras use multispectral images to offer the exclusive FLIR Color Thermal Vision ™ (CTV) technology.
FLIR M364C Dual Payload Thermal Camera No JCU 640 x 512 24D HFoV
Outstanding imaging performance, intelligent object recognition technology, and enhanced gyro-stabilization make the M364C and M364-LR indispensable tools for law enforcement professionals, commercial mariners, and serious recreational boaters.
Thermal and visible imaging featuring FLIR Color Thermal Vision and MSX®.
Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.
Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.
Specifications
General
Detector Type: 640 x 512 VOx Microbolometer
Field of View: 24° x 18°
Image Processing: FLIR Proprietary Digital Detail Enhancement
HD-SDI Lossless Video Output: Yes
Network Video Output: Single H.264 Network Video Stream
Pan & Tilt Adjustment Range: 360° Continuous Pan, +/- 90° Tilt
Pan/Tilt: Yes
Color Camera
E-Zoom - Color: 12x
Connections & Communications
Analog Video Output: NTSC/PAL User Settable
Analog Video Connector Types: BNC
Daylight Imaging
Zoom: 30x Optical Zoom
Detector Type - Daylight: 1/2.8" Exmor R CMOS
Field of View - Daylight: Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
Focal Length - Daylight: 129 mm to 4.3 mm
Lines of Resolution - Daylight: High Definition up to 1080/30p
Minimum Illumination - Daylight: 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on)
Environmental
Automatic Window Defrost: Standard at Power-Up
EMI: IEC60945
Lightning Protection: Standard
Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
Salt Mist: IEC60945
Shock: 15g vertical, 9g horizontal
Storage Temperature Range: -30°F to +158°F (-30°C to +70°C)
Vibration: IEC60945
Water Ingress: IPX6 (heavy seas, power jets of water)
Wind: 100 knots (115.2 MPH)
Sand & Dust Ingress: Mil-Std-810E or IP6X
Marine Imaging & Optical
Focus: Fixed 12ft (3m) to infinity
Thermal Imaging
Continuous E-Zoom: 8x
Focal Length - Thermal: 18mm
Video Refresh Rate - Thermal: 30 Hz
