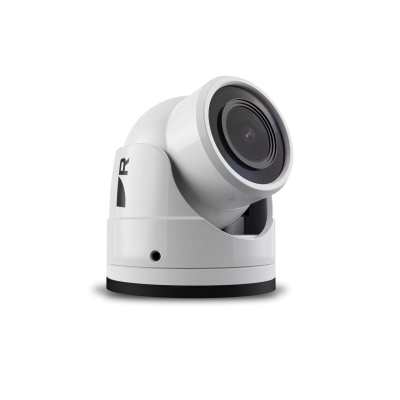

Raymarine CAM400 Marine Eyeball Day/Night IP Camera

Next-Gen Marine Security & Docking Assistance: The Raymarine CAM400 Day/Night IP Camera

The Teledyne Raymarine CAM400 Marine IP Camera is a high-performance, compact, fixed-mount video solution engineered specifically for demanding marine environments. Designed for seamless integration with Raymarine Axiom chartplotters running LightHouse operating systems, the CAM400 delivers sharp 1080p high-definition imagery to enhance close-quarters maneuvering, docking accuracy, engine room monitoring, and overall vessel security.

Key Operational Features & Real-World Marine Value

Streamlined Installation & Direct Cable Management

Unlike traditional marine IP cameras that require bulky, failure-prone RJ45 couplers along wire runs, the CAM400 features a factory-installed RayNet® Ethernet pigtail. This design simplifies routing through narrow t-top piping, radar arches, and tight wire chases without requiring specialized waterproof RJ-45 joiners.

Flexible Power Architecture (PoE or 12V DC)

Equipped to run via Power over Ethernet (IEEE 802.af Class 2) or standard direct 12 V DC wiring, the Raymarine CAM400 simplifies system architecture. Utilizing PoE allows both high-definition video transmission and system power over a single network cable, drastically reducing wire clutter and overall installation weight. The camera operates at an efficient nominal power draw of 2.1 W (reaching a maximum of 5 W only when infrared LEDs are active).

Advanced Docking Precision with LightHouse 5

When paired with an Axiom 2 display running LightHouse 5, the CAM400 introduces optional on-screen distance lines. These graphical visual guides allow captains and crew to judge precise clearance relative to docks, pilings, seawalls, or nearby vessels while maneuvering in tight slips.

ClearCruise™ Augmented Reality (AR) Integration

When connected alongside a Raymarine AR200 sensor module, the Raymarine CAM400 transforms raw video feeds into an intelligent navigational display. Dynamic graphic overlays—including AIS targets, saved waypoints, chart objects, and navigation aids—are projected directly onto the live camera stream on Axiom displays, providing total situational awareness while underway.

Multi-Camera Network Scalability & Flexible Orientation

With built-in image flip and invert capabilities, the CAM400 supports both ball-up (deck-mounted) and ball-down (overhead or hardtop-mounted) orientations. Compatible RayNet networks support up to 10 CAM400 cameras on a single vessel, creating a complete multi-angle monitoring matrix for blind spots, cockpits, engine compartments, and anchor setups.

Detailed Technical Specifications

• Resolution & Sensor: 1/2.8” CMOS Sensor delivering Full HD 1080p (1920 x 1080) video at adjustable frame rates up to 30 FPS.
• Field of View (FOV): 129.4° Horizontal FOV / 69.9° Vertical FOV / 153.6° Diagonal FOV.
• Night Vision: Integrated 850 nm Infrared (IR) illumination with a effective low-light range of 10 meters (33 feet).
• Video Formats: Multi-stream H.264 and MJPEG support; ONVIF Profile S compliant.
• Power Draw & Current: 12 V DC nominal supply; <420 mA max current; 2.1 W nominal draw / 5 W max (IR LEDs active).
• Ingress Protection & Marine Rating: Waterproof rated to IPx6 and IPx7 standards.
• Operating Temperature: -20 °C to +60 °C (-4 °F to 140 °F).
• Dimensions & Weight: 80.80 mm (3.18 in) Height including base; 420 g (0.926 lbs) total weight.
• Color Availability: White housing available now; Black housing version available early 2027.
