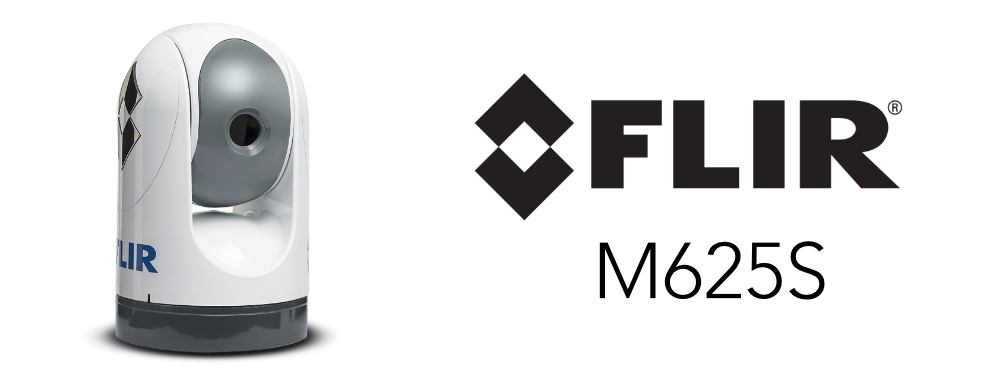

FLIR M625S Single Payload Thermal Camera
FLIR M625S Single Payload Marine Thermal Camera - FLIR Next Generation M625S pan/tilt thermal maritime camera lets you see more for greater safety and mission success, day or night. Gyro stabilization, and simple to integrate. The camera features a 640 x 512 resolution thermal camera and 360° Continuous Pan and +/-90° tilt capabilities for enhanced situational awareness 24/7. MFG#: 432-0003-64-00
Reference: 432-0003-64-00
$12,998.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
FLIR M625S Single Payload Marine Thermal Camera - 432-0003-64-00
The FLIR M625S creates thermal images with tremendous detail for such an affordable night vision system. You will see more—and see farther—even in the dead of night. And M-Series cameras also feature detailed, color on-screen symbology for instant access to system status, position, and configuration. Resolution 640 x 512 on 625S Series) is model dependent.
Features
- Advanced features improve situational awareness
- Detects other vessels, small craft, floating objects, and hazards—day or night—through darkness, glare, dust and light fog
- Display on any marine monitor, or integrate M-Series thermal imaging right on your marine multifunction display alongside charting and radar
- Simple joystick control of pan, tilt and zoom. Optional advanced touchscreen control from select marine multifunction displays
- Integrates seamlessly with existing electronics including select multifunction displays from Raymarine, Furuno, Garmin, and Simrad
- Slew-to-Cue target tracking from compatible radar, AIS and chart systems
- Composite video output for easy connection to MFDs and monitors
- Engineered especially for harsh marine environments
- Color symbology on-screen gives instant access to system status, position, and configuration
- 360° Continuous Pan, +/-90° Tilt with joystick control
- Gyro-stabilization - Now standard across the entire M-Series line
- Latest Generation Thermal Detector - For sharper details and better image quality
The M-Series pan/tilt re-defines maritime multi-sensor system design, drawing on FLIR’s 25 years of experience in building combat-proven airborne and maritime thermal imagers for militarys, coast guards, and governmental agencies around the world. With up to 640 x 512 thermal imaging, M-Series cameras let you see more — and see farther — than ever before. Even in the dead of night.
Specifications
| THERMAL IMAGING SPECIFICATIONS | |
| Detector Type | 640 x 512 VOx Microbolometer |
| Video Refresh Rate | 30Hz NTSC |
| Field of View (H x V) | 25° 20° |
| Focal Length | 25 mm |
| Continuous E-Zoom | 2x |
| Image Processing | FLIR Propriety Digital Detail Enhancement™ |
| SYSTEM SPECIFICATIONS | |
| Video Tracking | No |
| Firefighter Mode | No |
| Size | 7" (177.8 mm) dia. 11.2" (284.4 mm) ht |
| Weight | ~ 9 lbs |
| Pan / Tilt Adjustment Rate | 360° Continuous Pan, +/-90° Tilt |
| Analog Video output | 30 Hz or NTSC |
| Analog Connector type | F-type BNC with BNC-to-RCA adapter included for video out |
| Network Video Output | No |
| HD-SDI Lossless Video Output | No |
| Power Requirements | 12-24 V DC |
| Power Consumption | 25 W nominal; 50 W max |
| Enviromental | |
| Operating Temperature Range | -25°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| Automatic Window Defrost | Standard at Power-Up |
| Sand/Dust | Mil-Std-810E |
| Water Ingress | IPx6 (heavy seas, powerful jets of water) |
| Shock | 15 g vertical, 9 g horizontal |
| Vibration | IEC 60945; MIL-STD-810E |
| DimensionsLightening Protection | Standard |
| Salt Mist | IEC60945 |
| Wind | 100 knot (115.2 mph) |
| EMI | IEC 60945 |
| RANGE PERFORMANCE | |
| Person in the Water | 1,500ft (457m) |
| Small Vessel | 4,200ft (1,280m) |
What's in the Box
- Thermal camera
- Shielded ethernet cable & coupler (25')
- Joystick control unit
- Installation hardware
- Owner's manual
