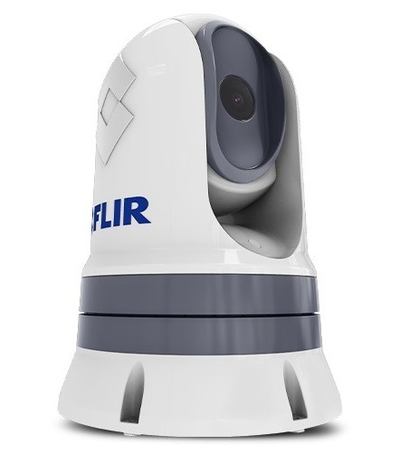

M332 Single Payload Thermal Camera No JCU 320 x 256 24D HFoV
FLIR M332 Single Payload Thermal Camera No JCU 320 x 256 24D HFoV combines a rugged all-weather design with one of the most advanced FLIR thermal imaging cores and provides thermal insight that improves awareness for police, commercial and recreational applications. Advanced gyro stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most difficult conditions.
Reference: E70527
In Stock: 14
$9,995.00
Free US Shipping on This Item!*
International Shipping Calculator
Earn 1069 Citimarine Points with this Purchase!
By buying this product you can collect up to 1069 Citimarine points. Your cart will total 1069 points that will be converted into a voucher of $106.90 towards your next purchase! Must be logged in to collect points.
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
FLIR M332 Single Payload Thermal Camera No JCU 320 x 256 24D HFoV
Thermal imaging offers vision in complete darkness, glare, and light fog.
Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.
Exceptional connectivity with navigation and security systems.
Specifications
General
Detector Type: 320 x 256 VOx Microbolometer
Field of View: 24° x 18°
Image Processing: FLIR Proprietary Digital Detail Enhancement
HD-SDI Lossless Video Output: Yes
Network Video Output: Single H.264 Network Video Stream
Pan & Tilt Adjustment Range: 360° Continuous Pan, ± 90° Tilt
Pan/Tilt: Yes
Connections & Communications
Analog Video Output: NTSC/PAL User Settable
Analog Video Connector Types: BNC
Environmental
Automatic Window Defrost: Standard at Power-Up
EMI: IEC60945
Lightning Protection: Standard
Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
Salt Mist: IEC60945
Shock: 15g vertical, 9g horizontal
Storage Temperature Range: -30°F to +158°F (-30°C to +70°C)
Vibration: IEC60945
Water Ingress: IPX6 (heavy seas, power jets of water)
Wind: 100 knots (115.2 MPH)
Sand & Dust Ingress: Mil-Std-810E or IP6X
Marine Imaging & Optical
Focus: Fixed 12ft (3m) to infinity
Thermal Imaging
Continuous E-Zoom: 8x
Focal Length - Thermal: 9.1mm
Video Refresh Rate - Thermal: 30 Hz
