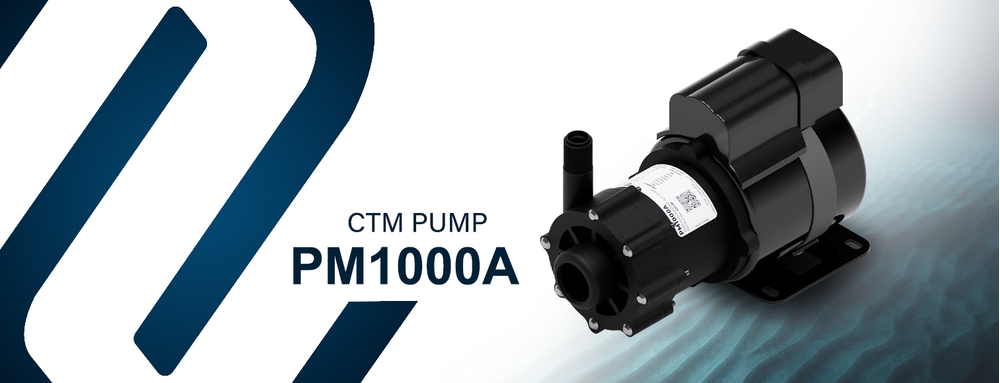

CTM - PM1000A - 1000 GPH - 115V - Mag-Drive Centrifugal Pump
(1) Customer review
CTM - PM1000A - 115V ODP (Open Drip Proof Motor Enclosure Model) is an American seal-less centrifugal magnetic drive pump. Replaces Dometic PMA1000 Pump. Polypropylene Plastic Pump Head and Impeller, 115V 50/60Hz Air Cooled Motor, Up To 17GPM, 1" FPT Inlet, 1/2" MPT Outlet, 3 Foot Power Cord with No Plug. Commonly used for marine air conditioning, chemical recirculation, and scrubber systems. 1000 gallons/hr. Consider using a carbon bushing for enhanced run dry protection
Part Number: PM1000A
.png.avif)
Reference: 40112P
$399.99
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
CTM - PM1000A Marine Pump - 115V - 1000 GPH

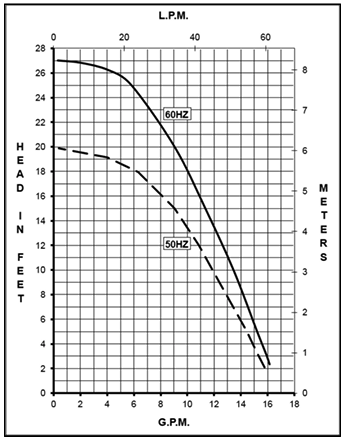

The CTM PM1000A is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 1 feet, and its maximum head is 27 Feet (or around 11PSI).
The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Ceramic, and Ceramic Magnet. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options).
Operation
Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact CTM.
Electrical
Model is115 Volt and have a 3 ft (0.9 m) Cord. Models have U.L. listed motors, which are rated for continuous duty.
Specifications
Inlet - Outlet: 1” FPT - 1/2” MPT
Max Internal Pressure: 50 psi (344 kPa)
Max Liquid Temperature: 190 °F (87 °C)
Dimensions (inches): 6.19 x 4.52 x 9.27
Packed Weight (lbs): 8.55

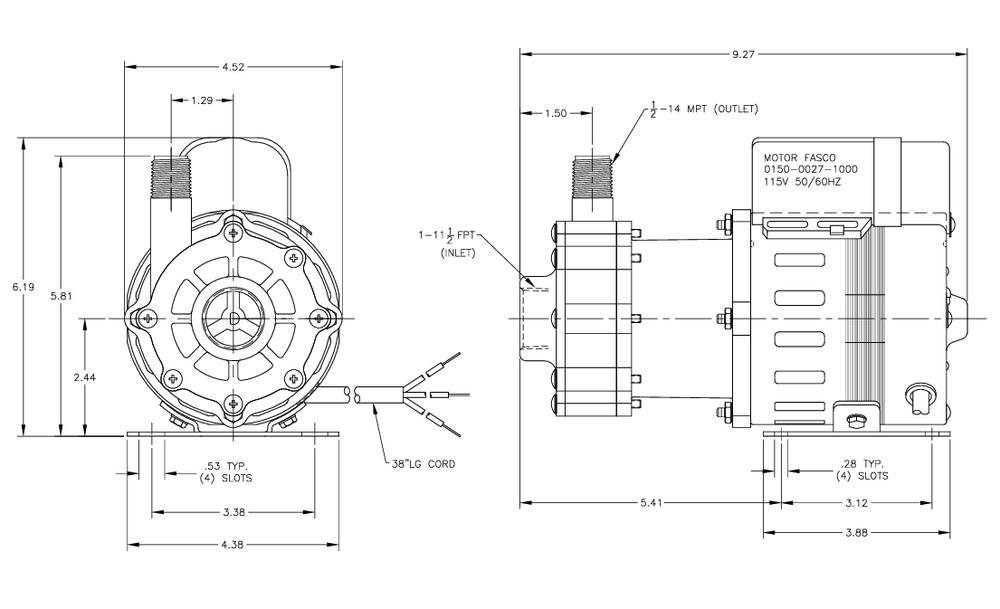

Dimensions
Technical Specifications
| Specification | 60 Hz | 50 Hz |
|---|---|---|
| Model | PM1000A | |
| Max Flow | 17 gpm / 64.4 lpm | 15.9 gpm / 60 lpm |
| Max Head | 27 ft / 11.7 psi | 19.7 ft / 8.5 psi |
| Phase | 1 | 1 |
| Voltage | 115 / 230 V | 115 / 230 V |
| Current | 2.1 / 1.0 A | 2.1 / 1.0 A |
| Power | 1/8 Hp / 0.093 kW | |
| Height | 6.19 in / 15.7 cm | |
| Width | 4.52 in / 11.4 cm | |
| Length | 9.27 in / 23.5 cm | |
| Packed Weight | 8.55 lbs / 3.87 kg | |

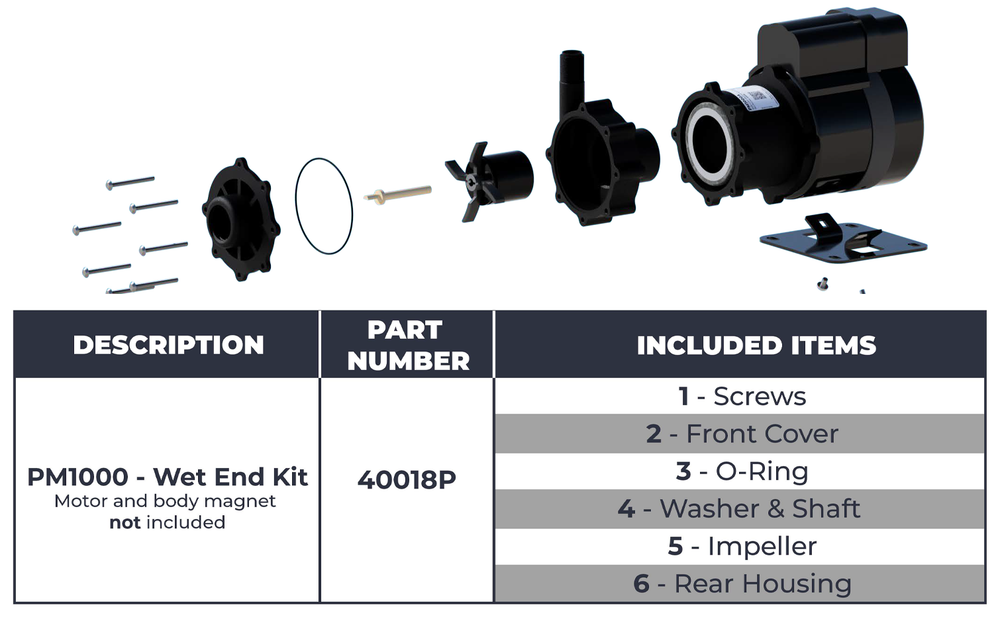

Pump Parts
Reviews
R
AC Pump
This pump was an excellant choice for our boat. It pumps twice as fast as our older pump and keeps the AC unit on board cold.
