CTM IC-1200 Inverter / Charger - 1200 Watt - 12V - 115V
Part Number: 40101I
Click here for details

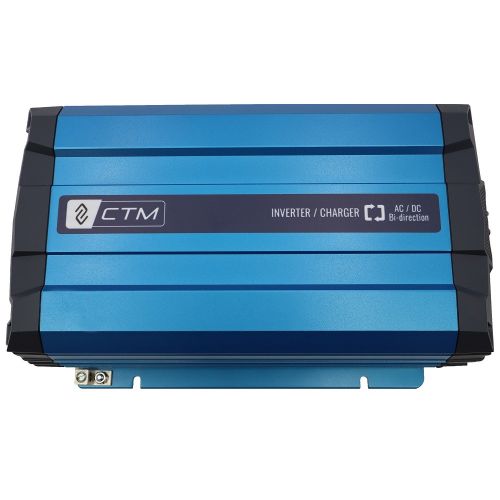

CTM IC-1200 12V 1200 Watt Inverter Charger - 115V
The CTM 12V 1200 Watt Inverter Charger features a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming—the IC-1200 offers simple installation with multiple operating modes, and can charge various battery chemistries—including a custom profile for use with Li-ion.
Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.
Features of the CTM IC-1200 Inverter / Charger
-
Bi-directional inverter and charger
-
Automatically various operation modes: 1. Inverter mode 2. Charger mode 3. Power Sharing 4. Power Generation 5. Power Support
-
3-stage charging function
-
Wide working temperature range ─-20oC ~ 40oC
-
UL & CE Certified. Such as UL458 with marine supplement, UL1741, FCC approved
-
-20oC~40oC full load operation without derating
-
High Power density (1200W @4.55kg, 2000W @ 6 kg)
-
Remote controller CR-20C / CR-16B / CR-8 (Optional)
Specifications
Input Voltage Range | 10 - 16.5 V |
Nominal input voltage | 12 V |
Max. charge current at 25 °C / 77 °F | 50 A DC |
Transfer Speed | 30 A (10ms) |
Flat battery support (minimum charging) | no (6 V) |
Continuous power at 25 °C / 77 °F, cos phi 1 | 1200 W |
Continuous power at 50 °C / 122 °F, cos phi 1 | 1200 W |
Surge power (3s) | 2400 W |
AC voltage / frequency | 120 V – 50/60 Hz selectable HF - pure |
Idle consumption | 25 W |
Dimensions, HxWxD | 386 x 251 x 116 mm 15.2 x 9.9 x 4.6 inch |
Weight | 4.55 kg 10.0 lb |
Compliance | UL458 & Supplement SA/CSA C22.2, UL 1741 no. 107.1-01KKK-A-1822F (pending, specifications subject to change) |
Temperature range (ambient temp.) | -20 °C to 60 °C -4 °F to 140 °F |
Dimensions
Length | 15.20 in (386 cm) |
Height | 4.57 in. (116 cm) |
Width | 9.88 in. (251 cm) |
