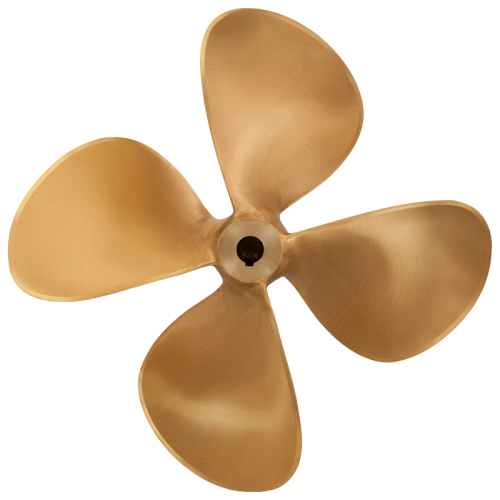

Michigan DQ-469 9" - 50" For Shaft Size 7/8" - 4" Propeller
La hélice DQ469 de 4 palas aumenta el empuje en aplicaciones con restricción de diámetro y reduce el ruido y la vibración, ofreciendo una alternativa suave y confiable a la Dyna-Quad.
Referencia: DQ-469
Hélices Michigan DJ-469
La DQ469 de cuatro palas utiliza el mismo diseño de pala que la DJ355. En embarcaciones recreativas, la cuarta pala proporciona empuje adicional en aplicaciones con restricción de diámetro y puede ayudar a minimizar el ruido y la vibración. Al igual que la DJ355, la DQ469 ofrece un gran valor con un rendimiento suave, confiable y silencioso, y puede considerarse una alternativa a la Michigan Dyna-Quad.
ESPECIFICACIONES DEL DQ-469 (0.69 E.A.R)
| Diámetro | Dimensiones del núcleo (pulgadas) | Orificio cónico estándar (pulgadas) | Ancho máximo de pala (pulgadas) | Área expandida por pala (PULG. CUAD.) | Peso neto aprox. (LBS.) |
*WR2 (LBS.-IN2) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pulgadas | MM | Extremo de popa | Extremo de proa | Longitud | Orificio mínimo | Orificio máximo | Orificio piloto | ||||
| 9 | 229 | 1-3/8 | 1-1/2 | 2-1/8 | 3/4 | 7/8 | 3/4 | – | – | – | – |
| 10 | 254 | 1-1/2 | 1-5/8 | 2-1/4 | 3/4 | 1 | 3/4 | – | – | – | – |
| 11 | 279 | 1-1/2 | 1-5/8 | 2-1/4 | 3/4 | 1 | 3/4 | – | – | – | – |
| 12 | 305 | 1-5/8 | 1-3/4 | 2-3/8 | 7/8 | 1-1/8 | 7/8 | – | – | – | – |
| 13 | 330 | 1-5/8 | 1-13/16 | 2-3/4 | 1 | 1-1/8 | 1 | – | – | – | – |
| 14 | 356 | 1-7/8 | 2 | 2-3/4 | 1 | 1-1/4 | 1 | – | – | – | – |
| 15 | 381 | 1-7/8 | 2 | 2-3/4 | 1 | 1-1/4 | 1 | – | – | – | – |
| 16 | 406 | 2-1/8 | 2-3/8 | 3-1/4 | 1-1/8 | 1-3/8 | 1-1/8 | – | – | – | – |
| 17 | 432 | 2-3/8 | 2-5/8 | 3-3/4 | 1-1/4 | 1-1/2 | 1-1/4 | 7-5/16 | 39.1 | 17 | 226 |
| 18 | 457 | 2-3/8 | 2-5/8 | 3-3/4 | 1-1/4 | 1-1/2 | 1-1/4 | 7-3/4 | 43.9 | 20 | 300 |
| 19 | 483 | 2-3/8 | 2-5/8 | 3-3/4 | 1-1/4 | 1-1/2 | 1-1/4 | 8-3/16 | 48.9 | 22 | 394 |
| 20 | 508 | 2-3/8 | 2-5/8 | 3-3/4 | 1-1/4 | 1-1/2 | 1-1/4 | 8-5/8 | 54.2 | 25 | 505 |
| 21 | 533 | 2-3/4 | 3 | 4-1/8 | 1-3/8 | 1-3/4 | 1-3/8 | 9 | 59.7 | 30 | 643 |
| 22 | 559 | 2-3/4 | 3 | 4-1/8 | 1-3/8 | 1-3/4 | 1-3/8 | 9-7/16 | 65.5 | 34 | 811 |
| 23 | 584 | 3 | 3-1/4 | 4-1/2 | 1-1/2 | 2 | 1-1/2 | 9-7/8 | 71.6 | 40 | 1,010 |
| 24 | 610 | 3 | 3-1/4 | 4-1/2 | 1-1/2 | 2 | 1-1/2 | 10-5/16 | 78.0 | 45 | 1,250 |
| 26 | 660 | 3-3/8 | 3-3/4 | 4-7/8 | 1-3/4 | 2-1/4 | 1-3/4 | 11-3/16 | 91.5 | 57 | 1,850 |
| 28 | 711 | 3-3/4 | 4-1/8 | 5-3/4 | 2 | 2-1/2 | 2 | 12 | 106.2 | 73 | 2,680 |
| 30 | 762 | 4-1/4 | 4-5/8 | 6 | 2 | 3 | 2 | 12-7/8 | 121.9 | 92 | 3,770 |
| 32 | 813 | 4-1/4 | 4-5/8 | 6 | 2 | 3 | 2 | 13-3/4 | 138.7 | 107 | 5,180 |
| 34 | 864 | 4-1/4 | 4-5/8 | 6-1/2 | 2-1/4 | 3 | 2-1/4 | 14-5/8 | 156.6 | 125 | 7,020 |
| 36 | 914 | 4-5/8 | 5-1/8 | 8 | 2-3/4 | 3-1/2 | 2-3/4 | 15-7/16 | 175.5 | 153 | 9,260 |
| 38 | 965 | 4-5/8 | 5-1/8 | 8 | 2-3/4 | 3-1/2 | 2-3/4 | 16-5/16 | 195.6 | 174 | 12,080 |
| 40 | 1,016 | 5 | 5-1/2 | 9 | 3 | 3-3/4 | 3 | 17-3/16 | 216.7 | 215 | 16,440 |
| 42 | 1,067 | 5-3/8 | 6 | 10-7/16 | 3 | 4 | 3 | 18 | 239.0 | 263 | 21,070 |
| 44 | 1,118 | 5-7/16 | 6-3/16 | 11 | 3 | 4 | 3 | 18-7/8 | 262.3 | 301 | 26,460 |
