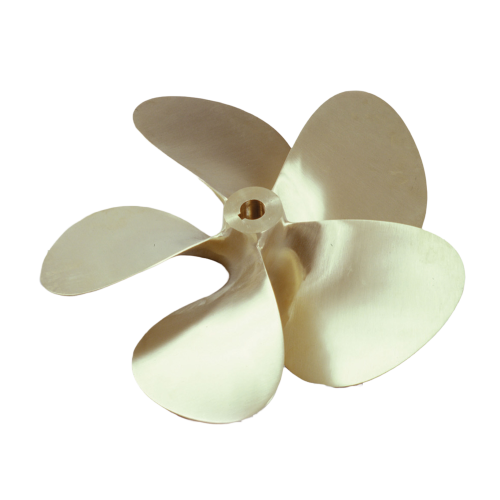

Michigan MY-T5 18" - 50" HyTorq Propeller
The HyTorq MY-T5 propeller offers increased blade area without enlarging diameter, enhancing performance in restricted clearance and turbulent water flow conditions.
Michigan HyTorq MY-T5
Many operators are selecting the HyTorq MY-T5 for new construction, repowering, and propeller upgrading. The main reason is to employ more blade area without having to increase propeller diameter, which may not be possible due to clearance or tip speed considerations. Another common reason is to improve propeller performance in installations where heavy v-struts, dead wood, or other hull appendages are agitating the water flow to the propeller.
Who Should Buy HyTorq Series Propellers?
HyTorq propellers were originally designed for the pleasure boats and fishing vessels of the Canadian Maritime Provinces. These propellers were extremely successful and quickly became popular throughout North America among boaters and boat builders alike. HyTorq propellers come in 3, 4, and 5 blade configurations, allowing them to be a great fit for vessels of varying speeds, powers, and sizes.
Similar to our Dyna Series, our HyTorq line is a classic design well suited for a number of different recreational and commercial applications. Compared to the Dyna Series, HyTorq propellers have a slightly different blade shape and a touch thicker blade sections, making them a particularly good choice for commercial boats.
HyTorq MY-T5 Propeller Specifications
Diameter (Inches) | Aft Hub Diameter | Forward Hub Diameter | Hub Length | Min Bore (Inches) | Max Bore (Inches) | Pilot Bore (Inches) | Weight (LB.) | Developed Area (IN²) | Wr2 (LB-IN²) |
---|---|---|---|---|---|---|---|---|---|
24 | 3-1/8 | 3-1/4 | 4-5/8 | 1-1/2 | 2 | 1-3/8 | 57 | 384 | 1,990 |
26 | 3-3/8 | 3-5/8 | 5 | 1-3/4 | 2-1/4 | 1-1/2 | 72 | 451 | 3,115 |
28 | 3-3/4 | 4 | 5-3/4 | 1-3/4 | 2-1/2 | 1-3/4 | 79 | 523 | 3,967 |
30 | 4 | 4-1/4 | 6 | 1-3/4 | 2-3/4 | 1-3/4 | 109 | 601 | 6,480 |
32 | 4-1/4 | 4-1/2 | 6 | 2 | 3 | 2 | 150 | 683 | 8,847 |
34 | 4-1/4 | 4-1/2 | 6-1/2 | 2 | 3 | 2 | 180 | 772 | 11,985 |
36 | 4-3/4 | 5-1/4 | 8-1/4 | 2-3/4 | 3-1/2 | 2-1/2 | 210 | 864 | 15,676 |
38 | 5-1/4 | 5-1/2 | 8-1/4 | 2-3/4 | 3-1/2 | 2-1/2 | 240 | 964 | 19,961 |
40 | 5-1/4 | 5-1/2 | 9 | 3 | 3-3/4 | 3 | 260 | 1,068 | 23,961 |
42 | 5-1/2 | 6 | 10-1/2 | 3 | 4 | 3 | 325 | 1,177 | 33,022 |
44 | 5-1/2 | 6-1/4 | 10-1/2 | 3 | 4 | 3 | 370 | 1,291 | 41,260 |
46 | 5-1/2 | 6-1/4 | 10-1/2 | 3 | 4 | 3 | 410 | 1,412 | 49,975 |
