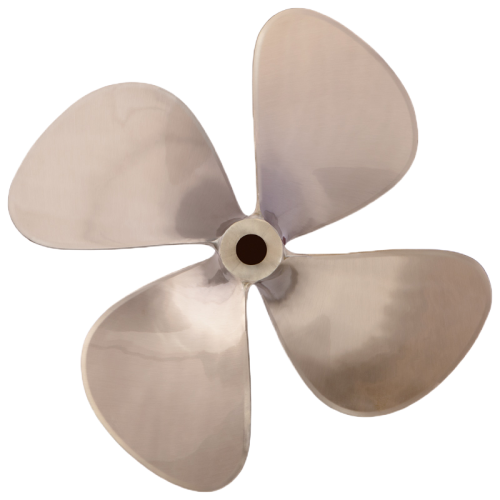

Michigan PAC-MASTER 20"- 30" For Shaft Sizes: 1 3/4" - 2 1/2" Commercial Propeller
The Pac-Master stainless steel series offers maximum durability and performance, modeled after the Dyna-Quad series. Corrosion-resistant CF3 alloy ensures reliability.
Referencia: PAC-MASTER
Michigan PAC-MASTER Commercial Propellers
Pacmaster propellers offer the sleek design of DQ propellers for operators who prefer the toughness of stainless steel.
Who Should Buy Dura-Quad Commercial Propellers?
Designed for maximum durability, the Pac-Master stainless steel series ensures long-life running without giving up performance. Modeled from our popular Dyna-Quad pleasure series, this series provides smooth and efficient operation. The increased blade root thickness gives the Pac-Master series the extra durability for all commercial applications. Corrosion resistant CF3 Stainless Steel alloy is used to insure rugged, dependable operation. The Pac-Master keeps the work moving in the toughest conditions.
All Pac-Masters are available in select even diameters. Odd diameters and pitch combinations are also available upon requests.
Pac-Master Specifications (0.69 E.A.R)
| Diameter (Inches) | Rotation | Hub Dimensions (Aft End) | Hub Dimensions (Forward End) | Standard Taper Bore (Length) | Minimum Bore (Inches) | Maximum Bore (Inches) | Pilot Bore (Inches) | Maximum Blade Width (Inches) | Expanded Area Per Blade (SQ. IN) | Approx. Net Weight (LBS.) | *WR2 (LBS.-IN²) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 x 18 | R | 2-3/4 | 3 | 4-1/2 | 1-1/2 | 1-3/4 | 1-1/2 | 8-1/16 | 54.2 | 26 | 627 |
| 20 x 20 | R | 2-3/4 | 3 | 4-1/2 | 1-1/2 | 1-3/4 | 1-1/2 | 8-1/16 | 54.2 | 26 | 627 |
| 22 x 18 | R | 3 | 3-1/4 | 4-7/8 | 1-3/4 | 2 | 1-3/4 | 8-7/8 | 65.5 | 34 | 1,003 |
| 22 x 20 | R | 3 | 3-1/4 | 4-7/8 | 1-3/4 | 2 | 1-3/4 | 8-7/8 | 65.5 | 34 | 1,003 |
| 22 x 22 | R | 3 | 3-1/4 | 4-7/8 | 1-3/4 | 2 | 1-3/4 | 8-7/8 | 65.5 | 34 | 1,003 |
| 24 x 20 | R & L | 3-3/8 | 3-3/4 | 5-3/4 | 2 | 2-1/4 | 2 | 9-11/16 | 77.8 | 46 | 1,545 |
| 24 x 22 | R & L | 3-3/8 | 3-3/4 | 5-3/4 | 2 | 2-1/4 | 2 | 9-11/16 | 77.8 | 46 | 1,545 |
| 26 x 30 | R & L | 3-7/8 | 4-1/4 | 6 | 2 | 2-1/2 | 2 | 10-1/2 | 90.9 | 61 | 2,302 |
| 28 x 28 | R & L | 3-7/8 | 4-1/4 | 6 | 2 | 2-1/2 | 2 | 11-1/4 | 106.2 | 72 | 3,303 |
| 30 x 28 | R & L | 3-7/8 | 4-1/4 | 6-1/2 | 2 | 2-1/2 | 2 | 12-1/16 | 122.5 | 85 | 4,633 |
| 30 x 30 | R | 3-7/8 | 4-1/4 | 6-1/2 | 2 | 2-1/2 | 2 | 12-1/16 | 122.5 | 85 | 4,633 |
