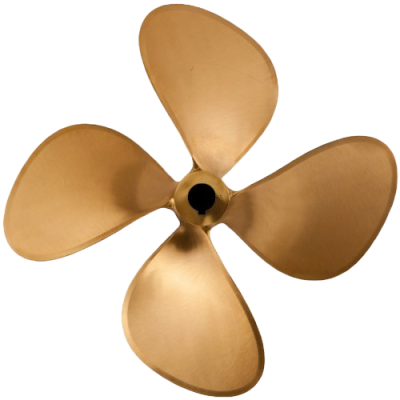

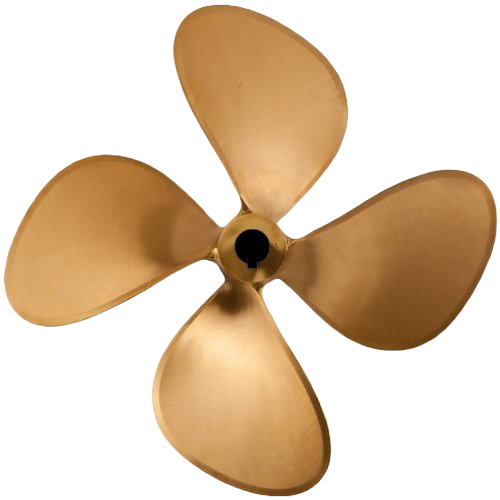

Michigan DURA-QUAD 24"- 36" For Shaft Sizes: 2" - 3 1/2" Commercial Propeller
Dura-Quad propellers utilize thicker blades to hold up better to heavy use in shallow water and contact with floating debris.
Referencia: DURA-QUAD
Michigan DURA-QUAD Commercial Propellers
Dura-Quad propellers utilize thicker blades to hold up better to heavy use in shallow water and contact with floating debris.
Who Should Buy Dura-Quad Commercial Propellers?
Michigan Wheel Dyna-Quad (DQ) propellers have often been used for medium to higher speed commercial applications. Over the years we have created three specialized styles of DQ propellers that meet the needs of many of today’s commercial applications.
Dura-Quad Specifications (0.76 E.A.R)
| Diameter (Inches) | Diameter (MM) | Hub Dimensions (Aft End) | Hub Dimensions (Forward End) | Standard Taper Bore (Length) | Minimum Bore (Inches) | Maximum Bore (Inches) | Pilot Bore (Inches) | Pilot S.E. Bore | Maximum Blade Width (Inches) | Expanded Area Per Blade (SQ. IN) | Approx. Net Weight (LBS.) | *WR2 (LBS.-IN²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 610 | 3 | 3-3/8 | 6 | 1-1/2 | 2 | 1-1/2 | 1.172 | 10-7/16 | 85.5 | 52 | 1,780 |
| 26 | 660 | 3-3/8 | 3-7/8 | 6-3/4 | 1-3/4 | 2-1/4 | 1-3/4 | 1.375 | 11-5/16 | 99.9 | 67 | 2,650 |
| 28 | 711 | 3-3/4 | 4-1/4 | 7-1/2 | 2 | 2-1/2 | 2 | 1.578 | 12-3/16 | 115.7 | 85 | 3,830 |
| 30 | 762 | 4-1/4 | 4-7/8 | 9 | 2 | 3 | 2 | 1.531 | 13-1/16 | 132.1 | 113 | 5,420 |
| 32 | 813 | 4-1/4 | 4-7/8 | 9 | 2 | 3 | 2 | 1.531 | 13-15/16 | 151.1 | 129 | 7,420 |
| 34 | 864 | 4-1/4 | 4-7/8 | 9 | 2 | 3 | 2 | 1.531 | 14-13/16 | 171.4 | 148 | 9,980 |
| 36 | 914 | 4-5/8 | 5-1/4 | 10-1/2 | 2-3/4 | 3-1/2 | 2-3/4 | 2.164 | 15-5/8 | 191.8 | 176 | 13,260 |
