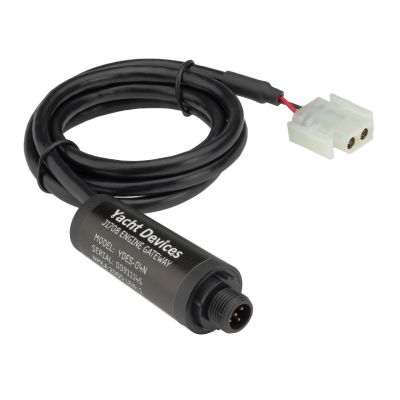

NMEA 2000 J1708 Engine Gateway YDES-04
Yacht Devices NMEA 2000 J1708 Engine Gateway - A gateway for engines with a J1708 serial interface to a NMEA 2000 marine digital network. With it, you can see engine revolutions, temperature, working hours, fuel rate and other information on the screen of a chart plotter and other display devices on an NMEA 2000 network.
Part Number: YDES-04N
Reference: YDES-04N
In Stock: 2
$289.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Yacht Devices NMEA 2000 J1708 Engine Gateway YDES-04N
A gateway for engines with a J1708 serial interface to a NMEA 2000 marine digital network. With it, you can see engine revolutions, temperature, working hours, fuel rate and other information on the screen of a chart plotter and other display devices on an NMEA 2000 network.
The Gateway supports the two protocols that work over J1708: the standard J1587 used by many manufacturers and the proprietary Volvo Penta protocol used in engines with EDC I, for example KAD 44, KAD 300, TAMD 73..75; also compatible with EDC II (e.g. D12C-A MP).
A J1708 interface is used for connection of gauges, electronic displays, diagnostics equipment and other vehicle modules. The Gateway provides all engine data supported in NMEA 2000 except tilt/trim for J1587 engines and the most important data for KAD engines (see the table above). Reporting of two fuel tanks and two batteries is also supported. Please see technical details and PID numbers in the Manual. The data you can get on the chart plotter depends on the engine controller firmware and the number of installed sensors.
The Gateway is equipped with a slot for a MicroSD card, which can be used to configure its settings (loading a text file with the settings), retrieve the current configuration, update the Device firmware and record the data from the J1708 and NMEA 2000 interfaces for configuration and diagnosis of the Device.
Key Benefits
- First (and the only!) device on the market with support of proprietary Volvo Penta KAD protocol;
- User alert settings for high revolutions, boost pressure, coolant temperature, low oil pressure and low alternator voltage;
- Low cost installation, no extra cables required in most cases;
- Easy configuration with a simple text file on MicroSD card;
- High-voltage galvanic isolation between J1708 and NMEA 2000 interfaces;
- J1708 data recording for diagnostics and configuration;
- One engine and transmission, 2 batteries and 2 fuel tanks may be reported by one Device.
Reasons to Buy
- Duplicate or replace broken instruments;
- In combination with a wifi-enabled chart plotter, you'll be able to monitor your engine from any cabin;
- In combination with our Wi-Fi Gateway, you'll be able to monitor your engines from PC, tablet or smartphone using a web browser;
- Log engine and fuel usage by crew or renters if a recording device like Voyage Recorder is outfitted;
- Record your engine data to apply for service remotely.
