AP70 Autopilot

By buying this product you can collect up to 180 Citimarine points. Your cart will total 180 points that will be converted into a voucher of $18.00 towards your next purchase! Must be logged in to collect points.

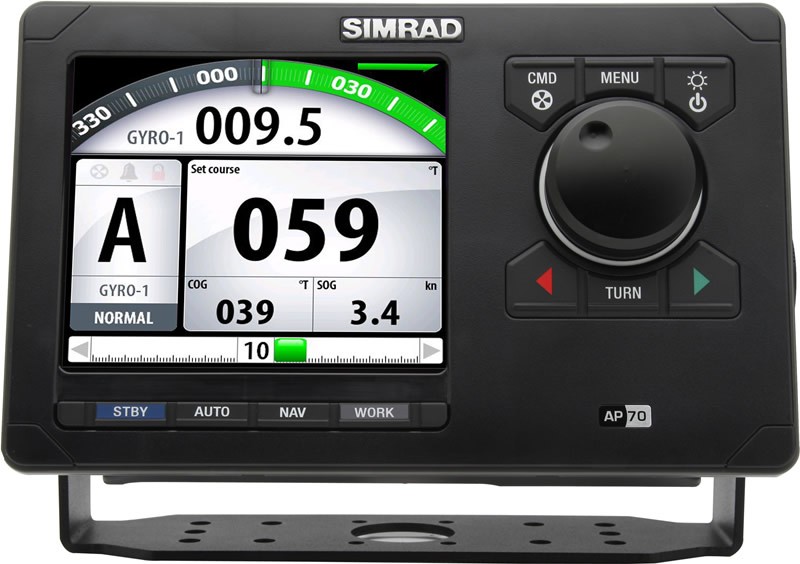

AP70 Autopilot

Customer ratings and reviews

AP70 Control unit, with user manual, 6m cable with connectors in both ends, T-connector, 2m power cable with connector in one end, protective cover, gasket for panel mounting, and mounting screws. Supply 12-24 VDC.

MFG#: 000-10182-001

Discontinued

More info

Large Colour Display

The 5-inch screen is highly visible and easy to read due the vivid colour palette.

Smooth Rotary Controller
Adjust your course with ease using the rotary controller, with push to enter functionality.
Easy To Use Interface
An intuitive user interface, designed by captains, with simple menus and dedicated keys ensures that you can alter course and find the information you need quickly and easily.
Rudder Interface Options
Comprehensive range of rudder support options, including dual rudder.
Thruster Integration
Interfaces with jets and thrusters.
CAN Bus & NMEA0183®
Network the AP70 via industry standard connectors for ease and simplicity.
Optional Remote Joystick
Choose from a range of optional joysticks and remote levers to enhance your steering experience.
Simrad Yachting Build
Made from ruggedized aluminium, the AP70 is not only feature packed, but also highly durable.
Fully Waterproof
Certified to IPX4

Display
Display: Backlighting	CCFL
Display Type	16-bit color bonded TFT
Display Resolution [pixels x pixels]	480 x 480
Multi-language Display	True
Display Size [mm]	127
Technical/Environmental
Construction	Epoxy coated seawater-resistant aluminium
Operating Temperature	0 - +55°C
Operating Temperature Stored	-32 - +70°C
Water Resistance	IPx4
Product Height [mm]	144
Product Depth [mm]	230
Weight [kg]	1
Product Depth	230 mm / 9.1 in
Product Height	144 mm / 5.7 in
Product Weight	1.2 kg / 2.6 lbs
Networking Connectors
Connectors	Can Bus. Ethernet (for software update)
Power
Power Consumption	0.7/0.4A at 12V DC 0.4/0.3A at 24 V DC backlight full/off
Power Supply (Supply Voltage)	12/24 V DC +10% -30%
NMEA 2000 Load Equivalency Number	1
Autopilot/Auto-Steering
Rudder Angle Bar Graph	True
Automatic Tuning	True
Course Change Rotary Knob	True
DODGE	True
Heading Capture In Turns	True
Multiple Compass Input	True
Multiple Stations	True
NFU Power Steering	True
Off Course Alarm	True
Remote Station Lock	True
Rudder Angle Calibration	True
Information
Annual maintenance	True
Dynamic error (x secant latitude)	A/M
Follow Up Rate	A/M
Picth/Roll Angle	True
Setting Time	True
Settle point error (x secant latitude)	True
System Selector Interface (Manual/Auto steering)	D
Turn Patterns	True
U-Turn	True
Warranty period	True
Work Mode	True
Zoom Mode	True
Zoom Range	True
System Monitoring Alarms	True
Other
Dedicated Mode Keys	True
Radar
Analogue Presentation	True
