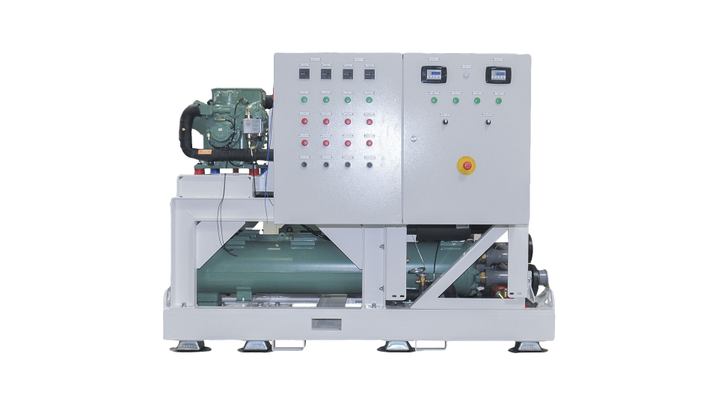

Webasto BlueCool Q-Series High Capacity Chiller - 500,000 to 1,500,000 BTU's

Webasto BlueCool Q-Series High Capacity Chiller - 500,000 to 1,500,000 BTU's

Name: Webasto BlueCool Q-Series High Capacity Chiller - 500,000 to 1,500,000 BTU's
Brand: Citimarine Store
SKU: Q-Series

Webasto BlueCool Q-Series High Capacity Chiller 500,000 to 1,500,000 BTU's - 360V-690V. The BlueCool Q-Series is designed on customer request for super yachts and commercial boats. Its modular concept, the sea water resistant design, it’s robust steel frame, easy serviceability and various more options like tropical versions or MCA electrical boxes make the Q-Series the product fitting to your needs. 2-year warranty with unmatched product reliability.

Contact Us for pricing and customization of the system.

Reference: Q-Series

Webasto BlueCool Q-Series High Capacity Chiller - 500 to 1,500 KBTU's

A large chiller system always needs to be customized to each boat in order to meet the demands of shipyards, owners, classification societies and national legislation. To cover cooling performances from 500,000 up to 1,500,000 BTU/ h Webasto offers the BlueCool Q-Series.

The BlueCool Q-Series is designed on customer request for super yachts and commercial boats. Its modular concept, the sea water resistant design, it’s robust steel frame, easy serviceability and various more options like tropical versions or MCA electrical boxes make the Q-Series the product fitting to your needs.

Key Features

High capacity chillers as project based development
Modular concept allows to combine multiple units into one integrated system
Easy maintainable semi-hermetic compressor
Heat exchanger tubes with highly efficient tube geometry and anti-fouling profile on the coolant side
Detachable end cover of tube condenser to permit mechanical cleaning of the pipes
Several customer specific options available such as gauges, redundancy controls, CAN bus interfaces etc.
Optional 100% pump-down capacity for making circuit repairs without recovering the refrigerant
Solid metal frame allows handling by forklifts and cranes
Silent blocks below frame effectively reduce vibrations if required
Entire cooling system can be configured with redundancy to ensure full cooling system availability
Up to 6 compressors can be controlled by one central control system

Webasto MyTouch Control Display Included

The BlueCool MyTouch display is the new standard display for all BlueCool A/C Series:
Full color, high resolution, interactive 2,4” touch screen
Multiple customization options available (design, colors, language, photos, etc.)
Protected: full access to system configuration parameters
Compatible with Vimar Eikon, Eikon EVO, Plana, Bticino Axolute

Technical specifications

Part number	BlueCool Q-Series
Cooling capacity (BTU / h)	500,000 - 1,500,000
Voltage (V)	360 – 690
Frequency (Hz)	50 / 60
Types of refrigerants	R134a, R407c,F1234yf
Min. Sea water temperature. Heating (° C)	6
Max. sea water temperature Cooling (° C) *	35

Warranty

Webasto Thermo & Comfort North America, Inc. (hereinafter, Webasto) guarantees its air conditioning systems against defects in material and workmanship for two (2) years, valid at the time of installation or the date of registration of the vehicle for the installation of the original equipment (OEM). This warranty period may not exceed three (3) years from the original date of sale by Webasto. Webasto guarantees compressors and compressor brackets against defects in material and workmanship for one (1) effective year at the time of installation or the date of registration of the vehicle for the installation of the original equipment (OEM). This warranty period may not exceed eighteen (18) months from the original date of sale by Webasto. This warranty period may be replaced by written contractual agreements.

Spare parts are covered for six (6) months or the rest of the original warranty period, whichever is longer.
