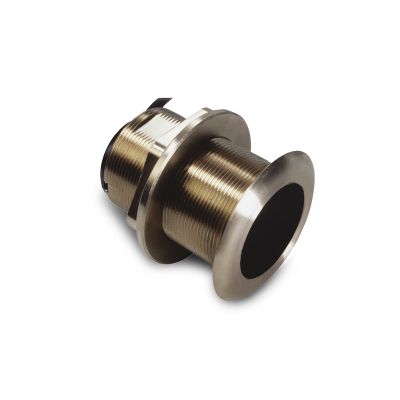

NAVICO B60 Depth/Temperature Transducer 20° Tilt

Name: NAVICO B60 Depth/Temperature Transducer 20° Tilt
Brand: Simrad
SKU: 000-00021-001
Price: 297.99 USD
Availability: InStock

Depth transducer w/ temp, 50/200KHz, 600 Watt, 45/12° beam angles, with temperature sensor. B60 bronze low-profile thru-hull (2.4" shaft) with 20° tilted element. Includes connector for BSM-1 Sounder Module, used on NS Series units.

Reference: 000-00021-001

$297.99

Free US Shipping on This Item!*

International Shipping Calculator

Return Policy

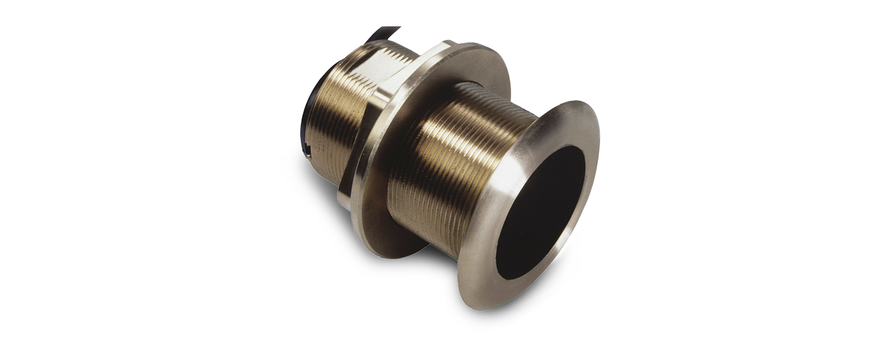

NAVICO B60-20, 20° TILTED ELEMENT TRANSDUCER

NAVICO B60 Tilted Element 20 The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

20° Titled version is designed for 16° - 24° deadrise angles. Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
