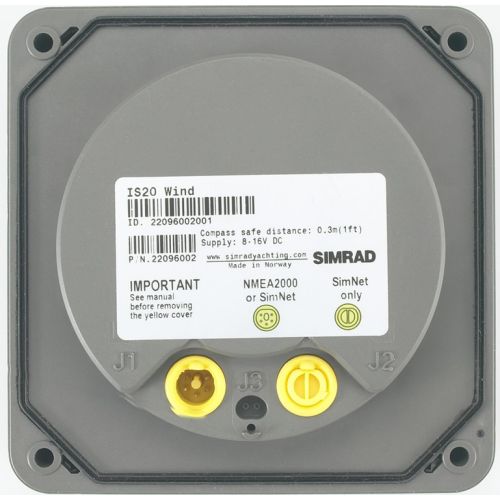

IS20 Wind Instrument Display
IS20 Wind, IS20 wind head w/30cm (1’) SimNet cable. Provides classic style w/ easy to read needle pointers and center mounted high contrast LCD display. Provides apparent and true wind angle and wind speed, VMG and Kalman wind filter.
MFG# 22095558
Discontinued. For more Simrad accessories, see here...
The IS20 Wind diplay combines a classic easy-to-read needle pointer display with an high contrast LCD readout, featuring simple 'daisy chain' connectivity.
Key Features
- Large Analogue Display
- High Contrast LCD Window
- 4 Control Buttons
- Apparent/True Wind Selection
- Simnet Intelligent Marine Network
- NMEA 0183® Input
- Backlighting Options
- Adjustable Damping
- Daisy Chain' Connectivity
Display |
|
Display Resolution | 130 x 104 (H x W) |
Display Type | Backlit LCD 4,5 inch matrix display |
Other |
|
Compass Safe Distance [mm] | 300 |
Technical/Environmental |
|
Operating Temperature | 0 to +55 °C (+32 to +130 °F) |
Operating Temperature Stored | –30 to +70 °C (–22 to +158 °F) |
Product Width [mm] | 114 |
Product Height [mm] | 114 |
Product Depth [mm] | 38 |
Weight [kg] | 0 |
Product Width | 114 mm / 4.5 in |
Product Depth | 38 mm / 1.5 in |
Product Height | 114 mm / 4.5 in |
Product Weight | 0.3 kg / 0.7 lbs |
Power |
|
Power Supply (Supply Voltage) | 12 V, 0.11A (1.3 W) vDC |
RC42 Rate Compass
Highly accurate rate compass featuring an integrated rate sensor.
FC40 Fluxgate Compass
Fluxgate compass for use with autopilots and navigation systems.
IS20 Mast Head Unit
Highly accurate masthead unit suitable for crusing and racing.
Download Instructions/Support Material
Download Software
No software available.
