Raymarine RV-200 Transducer - RealVision 3D Bronze Through Hull 0°

Raymarine RV-200 Bronze All-In-One Through Hull Transducer - Designed for inboard and outboard powerboats. The Raymarine RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. Fully Compatible with Axiom and Axiom Pro Multifunction Displays.

Part Number: A80465. Free US Shipping.
Reference: A80465
In Stock: 4
$1,319.99

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Raymarine RV-200 Transducer - RealVision 3D All-In-One Through Hull Transducer - With 0° Deadrise Compensation

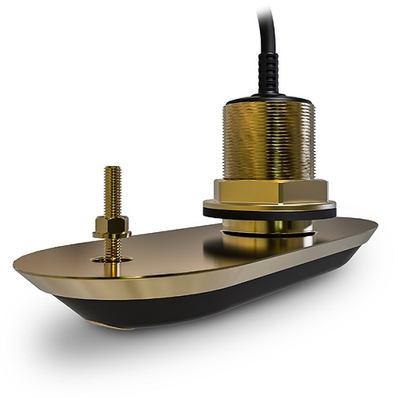

Raymarine RV-200 Transducer
Raymarine RV-200 Bronze All-In-One Through Hull Transducer - Designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The Raymarine RV-200 Transducer also has a built-in fast response water temperature sensor for quick, accurate readings.

Key Features

The Raymarine RV-200 Transducer features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The RealVision 3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze.


What's In the Box?

  • Raymarine RV-200 Transducer with 8-meter (26-foot cable)
  • Anti-rotation bolt kit
  • Installation instructions

Technical Specifications

Model Raymarine RV-200
Part Number A80465
Instalallation Through Hull
Material Bronze
Max Depth (Ft) 300
Frequency (KHz) RealVision
Beam Width (L/H) 180°
Records Depth and Temperature
Approved Hull Material Fiberglass/Wood
Cable Length (Ft/M) 26/8
Supported Deadrise /
Transom Angles
0-5° Dead rise

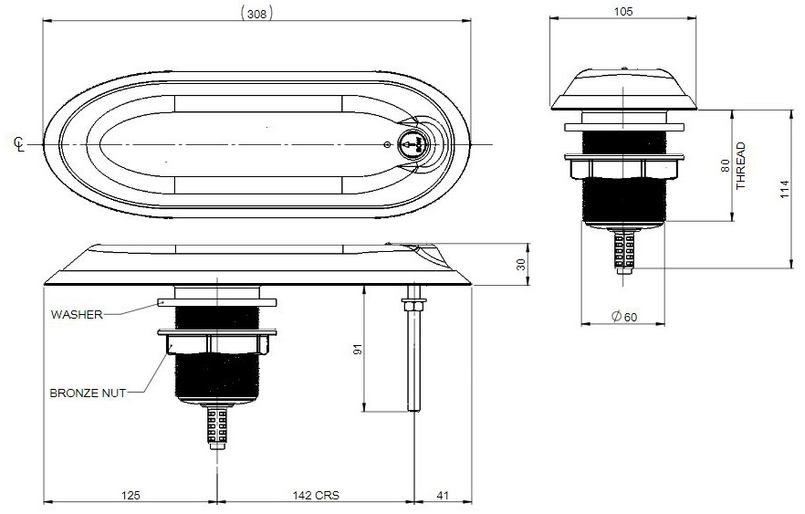

Dimensions (in mm)

RV-200 Dimensions
