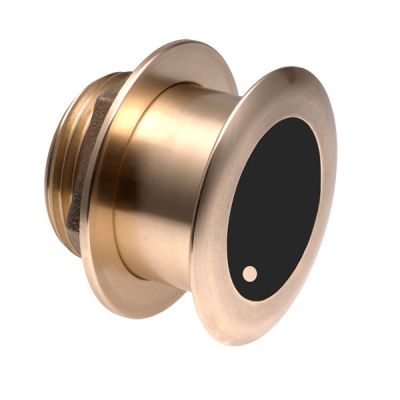

B164 (20 Degree) Thru-Hull Transducer (Sonar)
B164 High Performance Low Profile Thru-Hull Transducer w/ 20 Degree Tilted Element 1kW. Depth/Temp Transducer (a/c/e/eS Direct connect). Max Depth (Ft): L: 1,800 / H: 800. Frequency (KHz): 50 / 200. Cable Length (Ft/M): 30ft / 9m. Free US Shipping.
Reference: A80173
$848.99
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
With 3 internal ceramics the B164 provides the increased performance of a 1kW transducer, while maintaining the benefits of a low-profile, deadrise compensated housing. Given their flush design, low-profile transducers may be more easily subjected to surface aeration at higher speeds.
Features
|
Description |
B164 High Performance Low Profile Thru-Hull Transducer w/ 20 Degree Tilted Element 1kW |
|
Installation |
Thru-Hull |
|
Material |
Bronze |
|
Power (RMS) |
1KW |
|
Max Depth (Ft) |
L: 1,800 / H: 800 |
|
Frequency (KHz) |
50 / 200 |
|
Beam Width (L/H) |
22°/6° |
|
Records |
Depth / Temperature |
|
Approved Hull Material |
Fiberglass / Wood |
|
Cable Length (Ft/M) |
30ft / 9m |
|
Supported Deadrise / Transom Angles |
16-24° Deadrise |
Warranty On Raymarine B164 (20 Degree) Thru-Hull Transducer (Sonar)
*2 Year Standard Raymarine Warranty. Extend into 3 Year Warranty by Registering Product With Raymarine. Your Proof of Purchase documentation is important. Please keep it in a safe place. If you need a warranty service your proof of purchase will be required.
