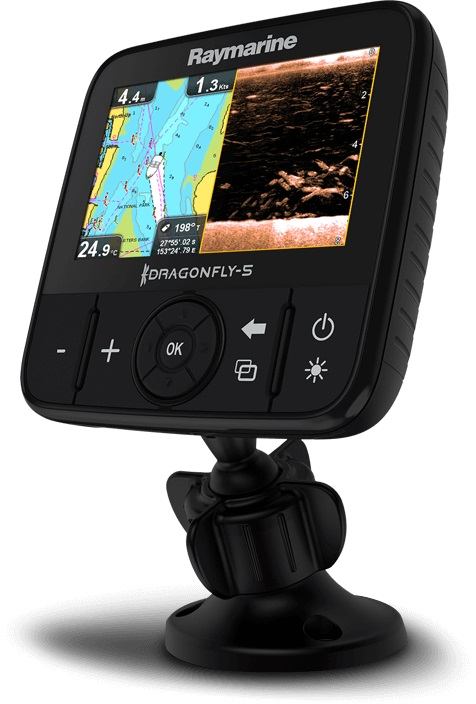

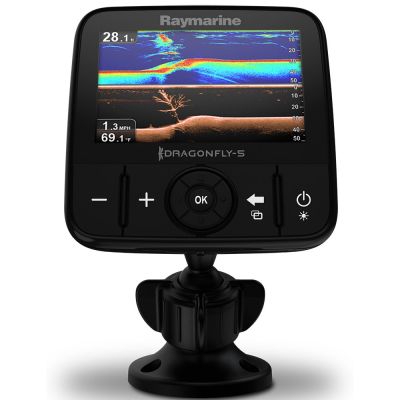

Dragonfly 5DVS fishfinder with 5" screen DownVisionTM Sonar
Raymarine Dragonfly 5DVS fishfinder with 350KHz Downvision plus 200KHz Chirp sonar, and 5" color LCD. No chartplotter. Includes tilt/swivel mount and transom mount transducer. Nominal Voltage: 12 V DC. Display size: 5.0 in.
Dragonfly 5DVS fishfinder with 5" screen DownVisionTM SonarThe Dragonfly 5DVS is equipped with dual-channel CHIRP sonar - see structure with DownVision™ and target fish with conventional sonar. Unlike conventional imaging sonars that transmit at a single frequency with each pulse, Dragonfly’s DownVision™ sonar uses CHIRP technology to transmit across a wide spectrum of sonar frequencies simultaneously – the result is much higher-resolution, life-like sonar images.
THE DRAGONFLY DIFFERENCE
A leap into the future of sonar, Dragonfly sonar displays employ true wide-spectrum CHIRP technology. With wide-spectrum CHIRP more sonar signals are transmitted into the water, allowing Dragonfly to interpret more detail, target more fish, and image structure with unmatched clarity.
A BETTER VIEW
Each Dragonfly is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonfly's all weather optically bonded displays deliver brighter colours, sharper contrast, and are guaranteed never to fog up.

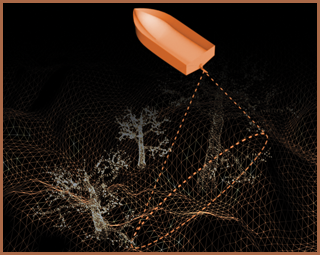

CHIRP DownVision™ - Simply The Best Imaging Sonar
CHIRP DownVision™ will change your underwater view with incredibly clear, photo-like sonar images. Dragonfly’s CHIRP DownVision™ surpasses ordinary imaging sonars with superior deep water performance to 600ft (180m) and reliable high speed bottom tracking.
Nominal Supply Voltage 12 V DC
Operating Voltage Range 10.8 V DC to 15.6 V DC
Power Consumption At Full Brightness 5DVS – 4.7 W RMS
Connections 5DVS Power / Transducer combined input
Waterproofing Standard IPX6 and IPX7
Display Size 5.0 in
Display Resolution 800 x 480 WVGA
Aspect Ratio 15:9
Sonar Type CHIRP Sonar
Sonar Channels 2 Channels - Sonar conical beam + DownVision™ wide fan beam
Depth Range 183m (600ft) CHIRP DownVision™ and CHIRP Sonar Models 275m (900ft)
Warranty 1 Year Warranty*
*This Raymarine Global Limited Warranty does not have the effect of excluding or limiting the customer’s statutory rights under the applicable national legislation. This warranty complies with EU directive 1999/44/EC.
