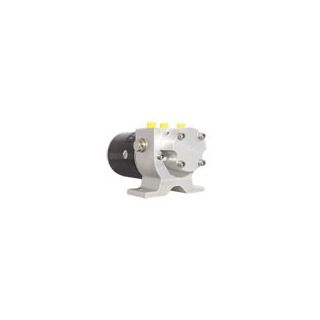

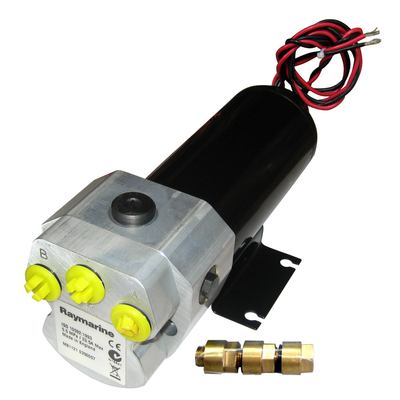

Type 3 Hydraulic Pump 12V
Raymarine Type 3 Hydraulic Pump, 12-volt for use with steering systems equipped with 21-30.5 cubic inch (350-500 cc) hydraulic steering rams.
MFG# M81122. Free US Shipping.
Vessel Displacement Does not apply here. The drive unit is matched to the ram capacity of the steering system
Ram Capacity 350cc – 500cc
Maximum Stall Pressure at 12V 80bar (1160psi)
Peak Flow Rate (No Load) 2900cc/min (175in3/min)
ACU Used ACU-400
Warranty On Raymarine Type 3 Hydraulic Pump 12V
*2 Year Standard Raymarine Warranty. Extend into 3 Year Warranty by Registering Product With Raymarine. Your Proof of Purchase documentation is important. Please keep it in a safe place. If you need a warranty service your proof of purchase will be required.
