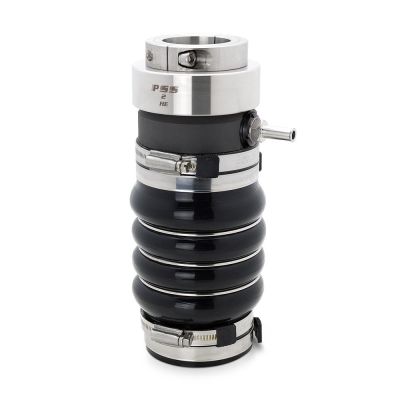

03-134-212 PSS PRO Shaft Seal by PYI - Mechanical face seal designed specifically for harsh, corrosive, high pressure & overall demanding environments.

Shaft Diam: 1-3/4".
Stern Tube Diam: 2-1/2" to 2-5/8"

PSS Pro Shaft Seal

In Stock: 10

03-134-212

Reg Price: $503.00
CPlus Price: $477.85 Question mark icon

Buy Now!

Add to cart

Financing Available with Affirm

Financing Available with Paytomorrow
Estimated monthly payment with 24 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

03-134-212 PSS PRO Shaft Seal - Shaft Diameter:  1-3/4", Stern Tube Diameter: 2-1/2" to 2-5/8"

The PSS PRO Shaft Seal is a mechanical face seal utilizing PYI's proven stainless steel and carbon sealing components, but adds a reinforced silicone bellow, a secondary shaft retention collar, 316 Stainless Steel hose clamps (rolled edges & non-perforated) and an optional Nitronic 50 rotor upgrade (for highly corrosive environments).

The PSS PRO shaft seal is designed specifically for applications that will require increased durability and resistance to harsh, corrosive, high pressure and otherwise demanding environments.

The PSS Pro's sealing surface is created between the flat surfaces of the rotating stainless-steel rotor and the stationary carbon flange. The stationary carbon flange is attached to a heavy duty silicone bellow which is attached to the vessel’s stern tube (shaft log), with 316SS hose clamps. The stainless-steel rotor is fitted on the shaft in front of the carbon flange and is used to compress the bellow, the rotor is then secured to the shaft with set-screws and the shaft retention collar is installed.

This compression (pre-load) maintains constant contact between the two mating faces of the stainless-steel rotor and carbon flange, allowing the PSS to compensate for the variable axial movement due to propeller thrust. The carbon flange is over-bored to the shaft diameter allowing it to “float” around the shaft and thus compensate for most misalignment and vibration from the drive-line. The stainless-steel rotor is sealed to the shaft by two O-rings that are recessed into the bore of the rotor. These O-rings rotate with the shaft and the stainless-steel rotor, and therefore do not experience wear during operation.


Dimensions
PSS Pro Shaft Seal Dimensions

Part #: 03-134-212
Shaft Dia. (A): 1-3/4"
Stern Tube Dia. (B): 2-1/2" to 2-5/8"
Approx. Length (C): 8.280"
Approx. Compressed Length: 7.280"
Rotor Diameter (D): 3.75"
Stern Cuff Length (E): 1.3"




How Does It Work?

03-114-134 PYI PSS PRO Shaft Seals

1. Two nitrile o-rings seal the stainless steel rotor to the shaft and will not experience wear.

2. A primary set screw and a backup set screw (2 sets) are used to secure the stainless steel rotor to the shaft.

3. A seal is created between the two mating faces of the carbon stator and the stainless steel rotor.

4. Raw water is fed to the PSS Shaft Seal for cooling / lubricating the seal faces on high speed vessels.

5. The stationary carbon stator is attached to the bellow, which is secured to the stern tube (shaft log).

6. The Shaft Retention Collar is attached to the shaft and helps retain the propeller or rudder shaft in your vessel in the event of catastrophic failure of the coupling or if the shaft comes free from the coupling.

7. Stainless steel rings are fit to the bellow for increased strength, support and durability. External rings come standard on sizes 2-1/4" (60mm) to 3-3/4" (95mm) and optional for smaller sizes.

8. 316SS hose clamps with rolled edges and non-perforated band.

9. Hose clamp tail protection, Clamp Jackets.


Components

COLLAR - The PYI Shaft Retention Collar is designed to help retain the propeller or rudder shaft in your vessel in the event of catastrophic failure of the coupling or if the shaft comes free from the coupling. The double split design provides the maximum in axial holding power with the benefit of quick and efficient assembly with the shaft installed. Design fully engages the shaft without marring. Easily installed where major disassembly would otherwise be required. Greater axial holding power than set screw or one-piece clamping collars. Effective on hard and soft shafts.
ROTOR - The PSS stainless steel rotor is slid down the shaft and is secured to the shaft with set screws at 90° for maximum holding power. Precision tolerances are maintained by computer controlled lathes. The faces have a number 9 micro finish and are perpendicular to the bore to prevent run-out as the collar rotates. The carbon graphite stator will polish the face of the rotor during the first few minutes of operation. The stainless steel rotor should not need to be replaced under normal operating conditions. The stainless steel rotor used on the PSS PRO Shaft Seal are made from 316L stainless steel.
CARBON STATOR - The high density, resin impregnated carbon/graphite stator is a space age composite that is first mixed, molded and then formed under pressure. The blanks are then baked, machined and lapped. The face of our carbon is finished to a flatness of 4 helium light bands (measured .000044" of variation over entire lapped surface). The grade of carbon used in the PSS has an operating temperature over 500° Fahrenheit (+260° Celsius), and cannot melt if the seal runs dry, unlike a rubber lip seal or plastic face seal. The high density of the carbon greatly increases the longevity and wear resistance. Several commercial vessels have recorded over 40,000 (over 4-1/2 years of continuous operation) engine hours on the same, original components. The carbon should not need to be replaced under normal operating conditions.
BELOW - The PSS PRO Shaft Seal bellow provides the best combination of durability, strength and elasticity. It's constructed of four ply aramid / silicone with a flurosilicone outer. This flurosilicone cover creates an oil and fuel resistant barrier protecting the exterior surface from the possibility of damage from splash or spill. Both ends of the bellow are sealed. The four ply cloth inlay provides excellent strength and resistance to abrasion. The strength of the bellow is greatly increased by fitting stainless steel hoops in the convolutions of the bellow. This bellow has a continuous operating temperature range of -90°F to +425°F (-70°C to +220°C).
HOSE BARB - For high speed vessels it is required that a positive water supply be plumbed to the PSS Shaft Seal for the purpose of lubricating and cooling the seal faces. There are many sources of water supply, review the PSS Shaft Seal Installation Instructions for more information and note all plumbing must follow the standards and practices of proper boat plumbing. In most cases a slow speed boat that does not have a bearing the shaft log does not require positive water feed and can simply be "vented". Ideally the vent line will be run at least 2-3 feet above the water line and is close to the center line as possible to ensure the vent hose is never below the water line, even if the boat heels. Review the PSS Shaft Seal Installation Instructions for more details on venting the seal.
BELOW RINGS - Stainless steel rings are fit to the bellow for increased strength, support and durability. Standard on sizes 2-1/4" (60mm) to 3-3/4" (95mm) and optional for smaller sizes.
