SMX II Keypad / Control Display - For Chiller Systems

SMX II Keypad / Control Display - For Chiller Systems

By buying this product you can collect up to Your cart will total 26 points that will be converted into a of $2.60 towards your next purchase! Must be to collect points.

SMX II Keypad / Control Display - For Chiller Systems

Customer ratings and reviews

SMX II BB (For Chillers) Keypad Display. Directly replaces the popular Dometic / Cruisair SMX II keypad display. Completely new designed and manufactured board. Fully compatible with original Dometic power (logic) boards. For Chiller Systems only. Questions? Contact us.

Part Number: ASY-423-X01

ORDER PROCESSING TIME IS 7-10 DAYS

In Stock: -2

$217.10

Buy Now!

Add to cart

Financing Available with Affirm

Financing Available with Paytomorrow
Estimated monthly payment with 24 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

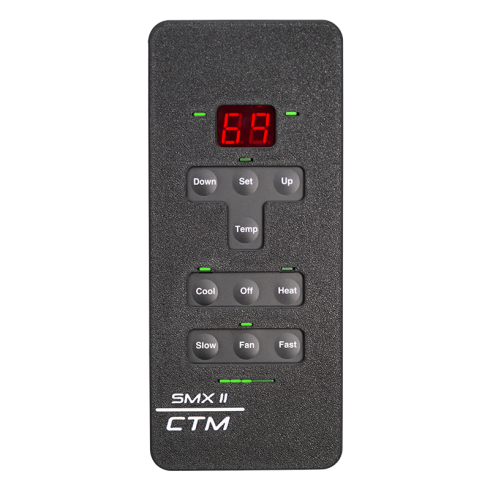

Fully Compatible Replacement for Dometic SMX II Keypad / Display - Micro Air ASY-423 - For Chiller Systems

dometic SMX II keypad display replacement

Replaces the SMX II Control from Dometic / Cruisair

Cruisair SMX II Keypad SMXIIAB

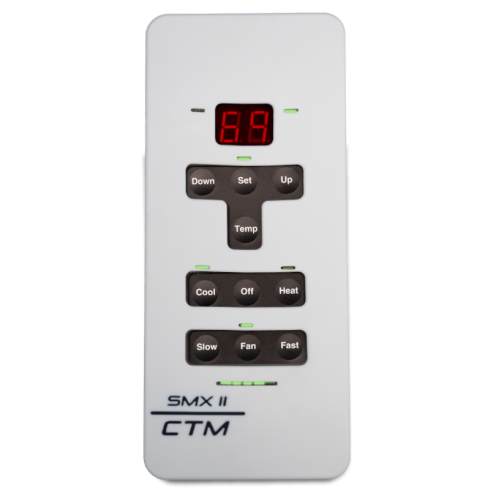

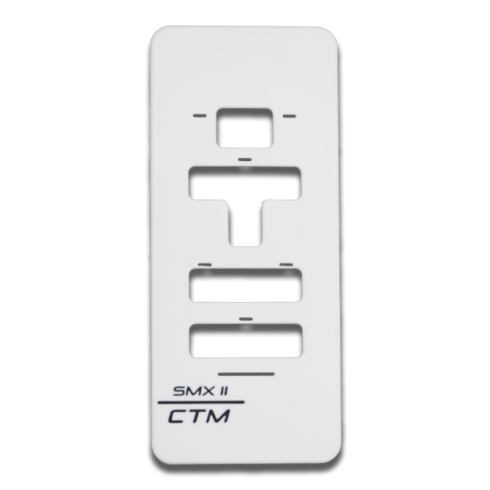

*Shown here with display cover
  • Completely new designed and manufactured board
  • Fully compatible with original Dometic / Cruisair power (logic) boards
  • Directly replaces the popular SMX II AB marine A/C keypad display
  • 4-conductor cable with a Molex connector on each end
  • Available in both Direct Expansion DX and TW Chiller System models
  • Identical operation as original Dometic SMX II Keypad, wall cutout-compatible

Specifications / Notes

The SMX II BB display has a noncorrosive ABS cover and soft-touch membrane switches. All keys are clearly labeled, making operation simple. The large, easy-to-read digital display shows set-point or cabin temperature and also is used to give information on operating parameters and fault code warnings. Small LEDs are used to indicate system status.

For normal operation, it is only necessary to turn the system on and select the desired set-point. The user can select cooling only, heating only, or automatic changeover between cooling and heating. Fan speed is automatically controlled, or can be manually set. Factory settings may be changed, with user-programmable commands, permitting the boat-owner to fine-tune the system for personal preferences. Programming modes are accessed by pressing special combinations of keys.

Programmable features Include A/C line voltage calibration, temperature calibration, compressor restart time delay, continuous or intermittent fan operation, low and high fan speed adjustment, compressor response differential, Fahrenheit or Celsius temperature display The system's nonvolatile memory retains all user-programmed settings, even when the power is switched off.

*Note: The TW model has no screen printing on the button overlay.
