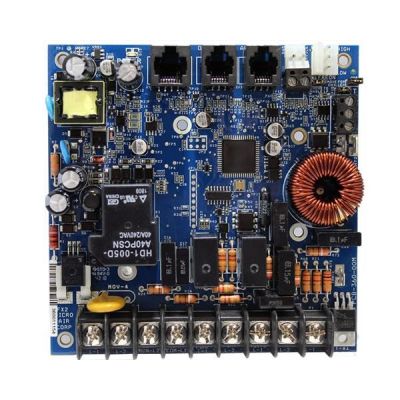

FX-2 Control Board Only
The FX-2 Control Board is the most advanced cabin control manufactured by Micro-Air and is one of the most advanced cabin controls in the marine HVAC industry. It not only provides support for the latest FX-2 control displays, it supports all of the legacy FX-1 control displays as well (configured by jumpers).
Reference: ASY-360-XM1
Regular Price: $304.99
CPlus Price: Login for Pricing
What is Citimarine Plus Membership?
Click here for details
Click here for details
Free US Shipping on This Item!*
International Shipping Calculator
Earn 33 Citimarine Points with this Purchase!
By buying this product you can collect up to 33 Citimarine points. Your cart will total 33 points that will be converted into a voucher of $3.30 towards your next purchase! Must be logged in to collect points.
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Micro-Air FX-2 Control Board Only
The FX-2 Control Board is the most advanced cabin control manufactured by Micro-Air and is one of the most advanced cabin controls in the marine HVAC industry. It not only provides support for the latest FX-2 control displays, it supports all of the legacy FX-1 control displays as well (configured by jumpers).
Compatibility
| Control Displays FX-1: ASY-375-X22 & ASY-375-X21 FX-Maxx: ASY-385-X09 & ASY-385-X01 FX-Maxx Designer: ASY-385-X02 EasyTouch (8-Pin): ASY-389-X02 & X02-WIFI |
Display Cables 8-Conductor: SUB-031- (Length in ft) |
Control Board Features and Options
- Universal 115/230 VAC 50/60 Hz power supply
- 2HP compressor output and 1/2 HP sea water pump output
- Reversing valve AC output controls either valve or electric heater
- High and low refrigerant pressure switch inputs
- 8-pin RJ-45 Display Interface
- Alternate (remote) air temperature sensor
- Outside air temperature sensor
- Service (condenser) temperature sensor for Pump Sentry
- Built-in CAN bus support (rev K and newer)
- Built-in support for up to 2 combo temp/humidity sensors for cabin humidity control or for FAMU operation (rev K and newer).
- Optional daughterboards for DC blowers and EasyStart
Benefits of the FX-2 Control Board Only
- Direct expansion, Air handler, and Fresh air makeup unit capable
- 100-240VAC compatible.
- Optional EasyStart for low current starts.
- Monitors sea water temperature preventing potential compressor damage
- Humidity control capable
- Electric heat AND reverse cycle capable.
- Built and programmed to handle the marine environment unlike competing controls.
- Connect wirelessly using EasyTouch
- Supports CAN communication systems like Crestron™
- Remotely mount the display up to 75 feet away.
- Variable independent fan speed control.
- Direct connection to a DC fan.
