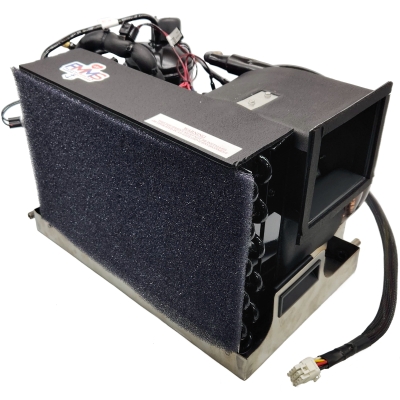

FMS M24 Cool Only Marine A/C Unit - 24,000 BTU's - 220V

Newest to the FMS Manufacturing line is the M24 – 24,000 BTU model marine air conditioner. Due to FMS customer demands, the M24 was created to solve the problem of locating a self-contained unit where performance, price, and efficiency were hard to find with an output larger than 16,500 BTU’s.

With a cooling capacity of 2,400 cubic feet, FMS 24,000 BTU unit is designed to cool cruisers over 40′ and sailboats over 45′.

Constructed on FMS standard stainless steel base with dual condensate drains, the M24 is an ideal addition to any vessel looking for maximum performance and durability – all in one package. The M24 is available in Right, and Top air discharge configurations and only comes in 220V. The air output collar holds an eight inch duct. It is recommended to use at least three vents on this unit – minimum sizes of 6 inch vents. FMS provides eight inch ducting and air splitters to take eight inch to multiple six inch vents.

All M24 models include a digital thermostat, insulation mounting pad, and air output collar. Pump not included.

New redesigned unit features:

- Redesigned control box with more reliability and fewer components (if you need pictures please let me know)

- 30 amp resettable circuit breaker (replacing the 30 amp glass fuse)

- Improved thermostat

- Inverted drip tray with carrying handles.

- Mechanical protection against freezing.

- Dual drain locations for easier installation.

- Soft Start technology – for smoother, more efficient startups

- Variable Speed Blower – for precise comfort and reduced power draw

FMS Standard Digital Programmable/Non Programmable Thermostat

The FMS Standard Programmable/Non-Programmable Thermostat / Control is designed to be used with any FMS unit. Programmable features allow for de-humidification. It is provided standard with each FMS Marine Air conditioning unit.

FMS Digital Thermostat. Designed to be used with any FMS unit. Programmable features allow for de-humidification.

It is provided standard with each FMS Marine Air conditioning unit. The thermostat is also accompanied with 20 feet of four-wire thermostat cable and installation instructions.

The programmable features allow for weekday and weekend setting for those boater’s who care to use the unit for dehumidification or simply climate control while not on board. The unit may also simply be used as a on/off control device by utilizing the “Hold” temperature setting key.

Non-Programmable Thermostats are also now available.

Dimensions:

Length 4 1/2" x Width 1 1/4" x Height 3 1/4".

Technical Specifications

FMS Manufacturing - Top of the Line Marine Air Conditioning, Backed By 5-Year Warranty

FMS Manufacturing is so committed to delivering quality that they make all of their A/C units by hand. Every unit is constructed of quality components assembled on solid stainless steel bases right here in the United States.

FMS has the right system for marine vessels ranging from the smallest cabin cruiser to a 75′ sailing yacht, selling between 900 - 1200 marine A/C units to happy customers each year. Every unit comes with a 5-year warranty against material defects and workmanship. For more details on the guarantee see downloads section below.
