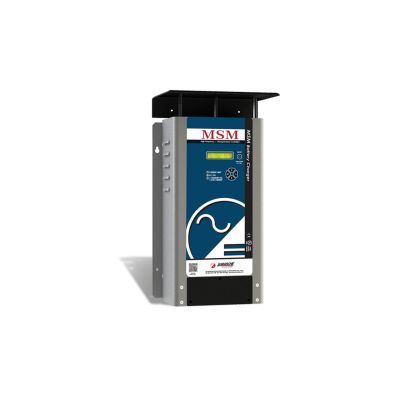

LA MARCHE - MSM Smart High Frequency Switchmode Charger - 24v - 25A
The La Marche MSM series is a Smart High Frequency Switch Mode charger designed for marine and engine starting applications. The MSM series incorporates a power factor correction (PFC) circuit with a wide input voltage range to suit many marine charging applications. Special order item, 2 weeks lead time.
PART NUMBER: MSM-25-24V-U1
Reference: MSM-25-24V-U1
Reg Price: $1,121.99
CPlus Price:
$1,065.89
What is Citimarine Plus Membership?
Click here for details
Click here for details
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
LA MARCHE - MSM Smart High Frequency Switchmode Charger
The MSM has an integrated battery charger splitter/isolator that provides connectors to simultaneously charge up to three independent batteries through a three-stage charge cycle. The filtered output of the MSM is suitable for charging various batteries in marine/industrial applications. The series features an LCD display for easy navigation of configuration menus. The LCD also displays AC input voltage, DC output voltage and current, and alarm status. There are three status LED indicators on the front of the unit to show the overall status of the system.
Easy to mount, easy to Install.
La Marche offers multiple Battery Charger Technologies for applications with special features to accommodate the marine shipboard applications requirements. La Marche’s chargers are used in all different applications in the marine industry; from engine starting to supplying vessel’s Switchgear equipment.
Technical Specification
| Model Number | AC Input 100% (LOAD) | DC Output | Case NO. |
NET Weight | |||
| Volts (Nominal) | Amps | Volts (Nominal) | Amps | lbs | kgs | ||
| MSM-25-24V-U1 | 120 | 6.5 | 24 | 25 | 203 | 11 | 5.0 |
| 240 | 3.1 | ||||||
| AC Input | Wide AC Input Range 102 - 264VAC |
| DC Output | 10 - 80A / 12V |
| Power Factor | 0.99 |
| Load Regulation | < ± 0.5% |
| Input Protection | Fuse with Surge and Transient Protection |
| Output Protection | Current Limit Protection |
| LED Indicators | Current Limit |
| Alarm Contacts | Charger Failure |
| LCD Digital Display | AC Input Voltmeter |
| Operating | -20° to 50°C (-4° to 122°F) |
| Storage | -40° to 85°C (-40° to 185°F) |
| Relative Humidity | 0 to 95% non condensing |
| Adjustable Voltage Range | 10.4 to 14.1 (12V) |
| Mounting | Wall mount |
| Cable Entry | Bottom |
| Finish | Powder coated aluminum enclosure (corrosion resistant) |
| Standards | UL 1236, ABS & USCG Requirements |
| Warranty | 2 Years |
Standard Features
- Smart Microprocessor Controlled High Frequency Charging Technology.
- LCD Digital Voltmeter & Ammeter.
- Filtered Output for VRLA (Gel-Cell & AGM) Batteries.
- Battery Isolator (Charge Divider allows for charging up to three Batteries Simultaneously).
- Input & Output Fuses.
- On/Off Switch with Disable Option.
