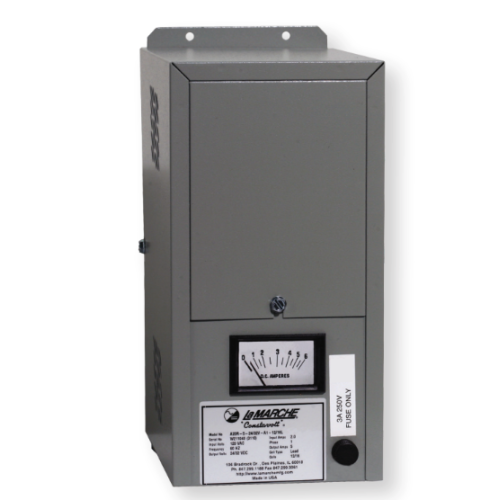

LA MARCHE - Engine Starting Battery Charger - 24v - 4A
The 24V DC Battery Charger delivers 4 Amps with 12 lead cells and operates on a 120V AC, 60Hz single-phase input. Weighing approximately 13 lbs., it comes in a #D02-5 case.
Special order item, 2-4 weeks lead time.
PART NUMBER: A20R-4-24V-A1-12L
Reference: A20R-4-24V-A1-12L
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
LA MARCHE - Engine Starter Battery Charger
The La Marche A18J and A20R Battery Chargers are fully automatic, designed for continuous operation on unloaded engine starting batteries. Built for permanent installation near engine generator sets, they connect directly to the battery and AC lines. These chargers require no external controls or adjustments after installation. They support 120V, 208V, or 240V AC single-phase input and include AC input taps for voltage adjustment in varying line conditions.
Easy to mount, easy to Install.
La Marche offers multiple Battery Charger Technologies for applications with special features to accommodate the marine shipboard applications requirements. La Marche’s chargers are used in all different applications in the marine industry; from engine starting to supplying vessel’s Switchgear equipment.
Standard Features
- Silicon diode full wave rectifier design
Optional Features
- 03A - DC cranking disconnect relay
- Automatic operation
- AC input fusing and DC output auto-reset breaker protects battery and charger
- Automatic surge protector
- Flush mounted 5% accuracy analog DC ammeter
- AC input voltages of 120, 208 or 240VAC, 50/60Hz, single phase
- No RFI (Radio Frequency Interference) emitted
- Simple operation - no external controls, switches or moving parts
- Charger design prevents battery from discharging if AC line fails
- Complete isolation of the AC line from the DC charging circuit eliminates the danger of high voltage shock to personnel on ungrounded equipment
- 2-Year Warranty

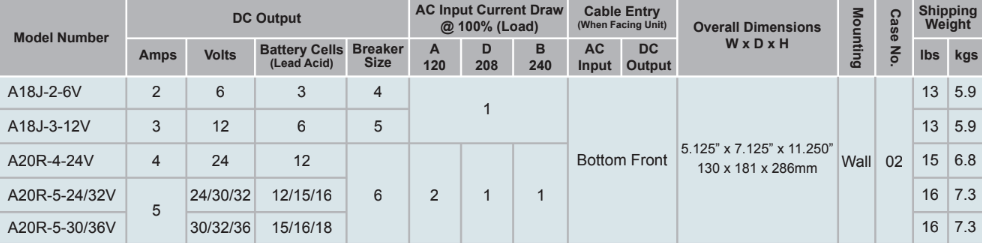

Technical Specification
- 4 Amps DC Output
- 24 Volt DC Output
- 12 Lead Cells
- 60 HZ Input
- 120 Vac Input
- Single Phase Input
- Weight: 13 lbs. approx.
- Case: #D02-5 case.
