Aqua-Box Multistage Pressure Pump - 220/240V - 50/60 Hz - 33 GPM
Headhunter Aqua-Box Multistage Pressure Pump - 220/240V - 50/60 Hz - 33 GPM. This pump features: quiet operation, composite construction, compact package, efficient multistage design, 1" NPT Inlet/Discharge.
Part Number: AQX-230

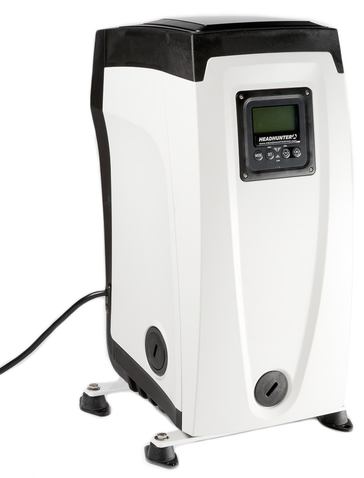

Headhunter Aqua-Box Multistage Pressure Pump - 33 GPM
The Headhunter Aquabox has a variable speed motor to deliver the right pressure at high and low demand situations. The Aquabox has an easy to operate interface with adjustable pressure settings, run dry protection, self diagnostics, usage stats and more. The Aqua box also has built in wireless communication that allows multiple pumps to work cooperatively, distributing load and run time for maximum performance and pump life.
Key Features
- Quiet Operation
- Composite Construction
- Compact Package
- 1″ NPT Inlet / Discharge = Single Pump
- 1-1/4″ NPT Inlet / Discharge = Twin Bracket
- Maximum Working Pressure 87 PSI
- Maximum Temperature 180˚ F
- Maximum Flow 33 GPM
- Efficient Multistage Design
- Integrated Expansion Tank
Technical Specifications
| Part Number | AQX-230 |
| Voltage | 220/240V AC |
| Frequency | 50/60 Hz |
| Maximum Current | 11 Amp |
| Maximum Power | 1550 W |
| NPT Inlet/Discharge | 1" |
| Maximum Working Pressure | 87 psi |
| Maximum Temperature | 180 F |
| Maximum Flow | 33 GPM |

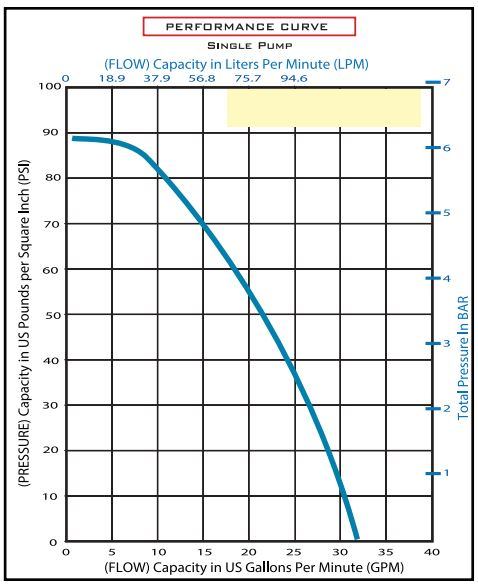

Performance Curve

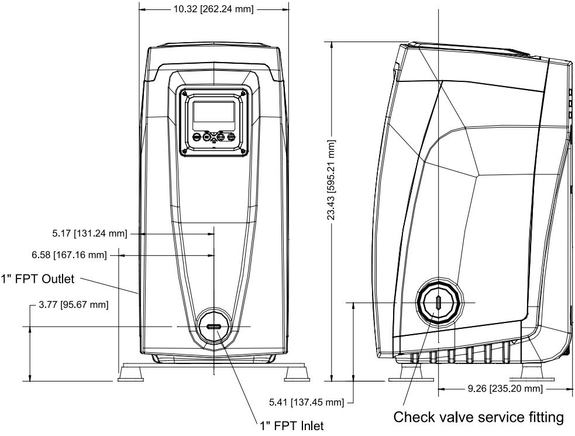

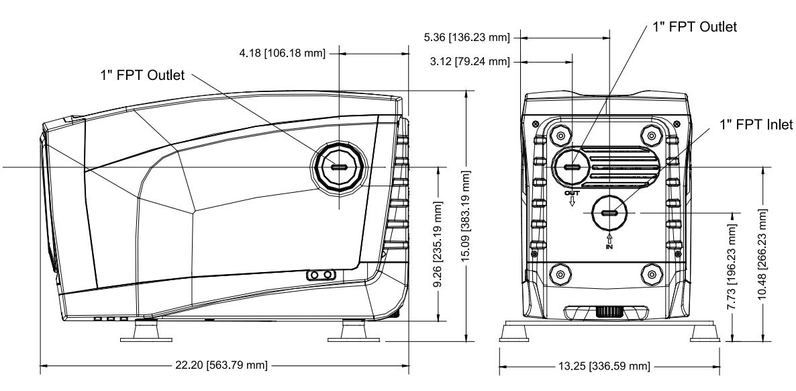

Dimensions
