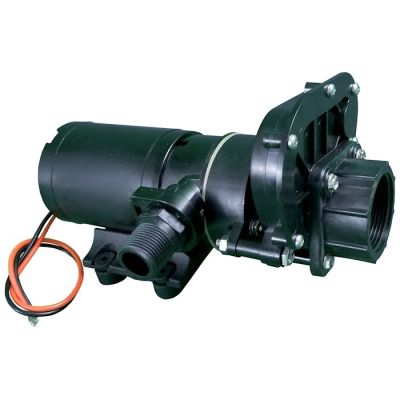

53101 Series Macerator Pump with Waste Valve Assembly
RARITAN 53101 Series Macerator Pump with Waste Valve Assembly has a flow: 11 GPM (max.). It includes an innovative gate / waste valve assembly. Ports: Inlet: 1-1 / 2 "Barb and NPT Male Hose, Outlet: 3/4" MNPT. Select voltage, current consumption: 12.3 A @ 12 volts DC / 6.2 A @ 24 volts DC.
Reference: 53101-12
$240.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
RARITAN 53101 Series Macerator Pump with Waste Valve Assembly
The realization that a macerator pump needs servicing leaves many boat owners sighing with despair. It's a seriously nasty job. Even if a technician does the dirty work, it'll take days to get rid of the odor. With Raritan Engineering's patented 53101 Macerator Pump with Waste Valve, it's fast and easy to disconnect the pump from the holding tank discharge tube, with minimal, if any, spillage. Raritan's Macerator Pump has few rivals. Available in 12 or 24V DC, it's built for a long, reliable service life. Fully encased in epoxy, its motor has a spring-loaded shaft seal and its unique nitrile rubber impeller is tested and proven to run dry three times longer than the competition. Heavy duty, dual-cut steel chopper blades ensure complete waste maceration. Eliminating the need for an external ball valve, Raritan's Waste Valve isolates the impeller from the holding tank discharge port. It has a 1-1/2" barbed inlet and 3/4" MNPT threaded outlet. A video is at bit.ly/RaritanMacerator. With the optional Smart Macerator Control (SMC), the 53101 Macerator Pump with Waste Valve is almost maintenance-free. It continually monitors the pump motor to protect against priming failure and dry running. With power to the SMC, it will move the impeller periodically to avoid binding. This is especially helpful to boats that aren't used with regularity.
Features
Specifications
Self priming flexible rubber impeller with stainless steel wearplate
Impeller: Raritan Proprietary Nitrile compound
Blade: Stainless steel double cut
Seal: Viton Lip with 316 stainless steel spring and case
Motor:
Permanent magnet type
Fully enclosed
Stainless steel shaft
Thermal protection for overload
Powder coated housing with sealed ball bearing
Power: 12 or 24 Volts DC
Maximum Draw:
12.3 Amps @ 12 Volts
6.2 Amps @ 24 Volts
Ports:
Inlet: 1-1/2" hose barb & 1-1/2" NPT Male
Outlet: 3/4" MNPT and 1" Hose Barb
Fittings snap into the pump via quick connect fitting
Lead wires: 14 GA, Red and black
Approvals: Ignition protected, ISO 8846
The realization that a macerator pump needs servicing leaves many boat owners sighing with despair. It's a seriously nasty job. Even if a technician does the dirty work, it'll take days to get rid of the odor. With Raritan Engineering's patented 53101 Macerator Pump with Waste Valve, it's fast and easy to disconnect the pump from the holding tank discharge tube, with minimal, if any, spillage. Raritan's Macerator Pump has few rivals. Available in 12 or 24V DC, it's built for a long, reliable service life. Fully encased in epoxy, its motor has a spring-loaded shaft seal and its unique nitrile rubber impeller is tested and proven to run dry three times longer than the competition. Heavy duty, dual-cut steel chopper blades ensure complete waste maceration. Eliminating the need for an external ball valve, Raritan's Waste Valve isolates the impeller from the holding tank discharge port. It has a 1-1/2" barbed inlet and 3/4" MNPT threaded outlet. A video is at bit.ly/RaritanMacerator. With the optional Smart Macerator Control (SMC), the 53101 Macerator Pump with Waste Valve is almost maintenance-free. It continually monitors the pump motor to protect against priming failure and dry running. With power to the SMC, it will move the impeller periodically to avoid binding. This is especially helpful to boats that aren't used with regularity.
Features
- The Raritan 53101 Series Macerator Pump includes Innovative Waste / Gate Valve Assembly isolates the waste matter from the pump during maintenance
- This new features allows you to remove the pump without disconnecting plumbing
- All stainless steel bolts to avoid corrosion problems
- Spring loaded Viton shaft seal is used to prevent premature leaks
- Proprietary rubber impeller compound allows longer dry running time
Specifications
Self priming flexible rubber impeller with stainless steel wearplate
Impeller: Raritan Proprietary Nitrile compound
Blade: Stainless steel double cut
Seal: Viton Lip with 316 stainless steel spring and case
Motor:
Permanent magnet type
Fully enclosed
Stainless steel shaft
Thermal protection for overload
Powder coated housing with sealed ball bearing
Power: 12 or 24 Volts DC
Maximum Draw:
12.3 Amps @ 12 Volts
6.2 Amps @ 24 Volts
Ports:
Inlet: 1-1/2" hose barb & 1-1/2" NPT Male
Outlet: 3/4" MNPT and 1" Hose Barb
Fittings snap into the pump via quick connect fitting
Lead wires: 14 GA, Red and black
Approvals: Ignition protected, ISO 8846
